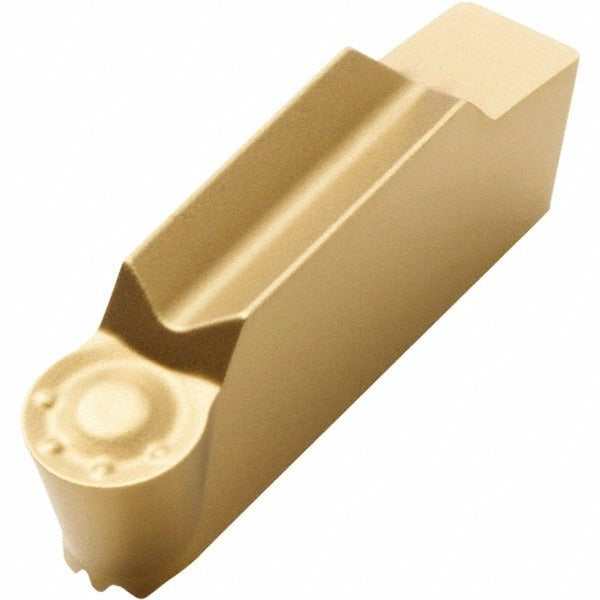

Seco 00016826 Multi-directional Turning Insert CP500

Product Description

The SECO 00016826 is a solid carbide, multi-directional turning (MDT) insert designed for precision external turning and grooving operations on CNC lathes and turning centers. Manufactured to the LCMR insert style in the 1606M0 size code, it features a TiAlN/TiN PVD coating applied over a micrograin carbide substrate in the CP500 grade. The insert delivers a maximum cutting width of 0.236 inches, a cutting height of 0.177 inches, and a corner radius of 0.118 inches. The full-radius geometry and MP chipbreaker promote stable chip control across a wide range of workpiece materials. Licensed machinists and CNC operators install this insert in compatible MDT toolholders.

The 00016826 is suited for turning, profiling, and grooving operations in both roughing and finishing passes. The neutral hand orientation supports use in both left- and right-hand cutting directions, making it adaptable in multi-directional toolpaths. Approved primary workpiece material codes include H, K, M, N, P, and S, covering hardened steels, cast iron, stainless steels, non-ferrous alloys, carbon and alloy steels, and heat-resistant superalloys. This insert is sold individually with a minimum order quantity of 10 units per transaction.

Key Features

• CP500 micrograin solid carbide substrate for consistent edge strength and wear resistance
• TiAlN/TiN PVD coating for thermal protection and extended tool life across varied workpiece materials
• Full-radius insert geometry with 0.118 inch corner radius for smooth profiling passes
• MP chipbreaker designed for reliable chip evacuation during multi-directional cutting
• Neutral hand orientation supports both left- and right-hand cutting directions in a single insert
• 7-degree relief angle reduces rubbing and supports clean cutting action on contoured surfaces

Compatibility

Designed for use in MDT series toolholders accepting LCMR1606M0 style inserts. Compatible workpiece material codes as specified by the manufacturer: H, K, M, N, P, and S.

Installation Notes

Installation is performed by qualified CNC machinists or toolroom technicians. Shut down the machine spindle and confirm the turret is locked before seating or replacing inserts. Use the appropriate torx or insert-clamping key specified by the toolholder manufacturer to secure the insert — do not use substitute tools that may damage the clamping screw. Verify insert seating and runout before resuming production cuts.
