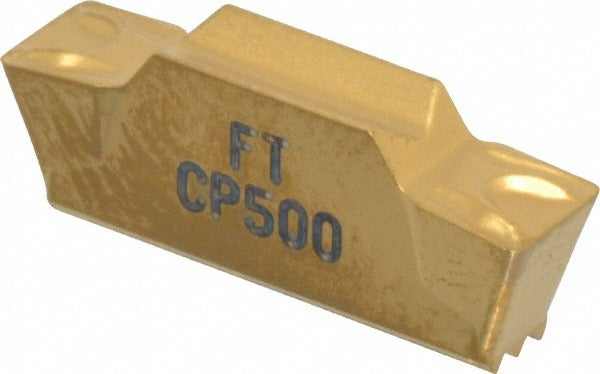

Seco 00016728 Turning Insert CP500 Solid Carbide Lcmf

Product Description

The SECO 00016728 is a solid carbide multi-directional turning insert designed for high-performance grooving and turning operations on CNC lathes and turning centers. Manufactured to the LCMF style in the MDT series, this insert carries a CP500 manufacturer grade with a micrograin carbide substrate and a PVD-applied TiAlN/TiN coating for improved wear resistance and tool life. Key dimensions include a maximum cutting width of 0.157 inches, a cutting height of 0.177 inches, and a corner radius of 0.016 inches. The double-end configuration maximizes usable insert life. Licensed machinists and CNC operators handling multi-material production runs are the primary users of this insert.

The 00016728 is suited for multi-directional turning, grooving, and face grooving applications where neutral-hand, double-end geometry offers flexibility. The FT chipbreaker geometry and 7-degree relief angle support chip control across a broad range of workpiece materials. Primary workpiece material codes covered include H, K, M, N, P, and S, making this insert applicable to hardened steels, cast iron, stainless steel, non-ferrous materials, carbon and alloy steels, and heat-resistant superalloys. It is sized to LCMF160404 with a 0.157-inch cutting width and fits toolholders designed for the LCMF insert style. Sold individually with a minimum order quantity of 10 units.

Key Features

• CP500 micrograin solid carbide substrate with PVD TiAlN/TiN coating for extended wear life
• Double-end insert design maximizes the number of cutting edges per insert
• FT chipbreaker geometry promotes reliable chip evacuation across diverse materials
• Neutral hand orientation supports flexible use in multi-directional turning operations
• 7-degree relief angle reduces rubbing and supports clean cutting on a wide material range
• Compatible with primary workpiece material codes H, K, M, N, P, and S

Compatibility

Designed for use in toolholders accepting LCMF-style inserts in the MDT series. Compatible with workpiece material codes H, K, M, N, P, and S as stated in manufacturer specifications. No additional compatible model numbers or system families were specified in the available product data.

Installation Notes

Insert seating and clamping should be performed with the machine powered down and spindle locked. Use a torque wrench calibrated to the toolholder manufacturer's recommended fastener specification — do not rely on feel alone when securing the clamping screw. Inspect the insert pocket for debris, damage, or wear before seating a new insert. Machining professionals should follow applicable shop safety protocols and toolholder OEM guidelines when indexing or replacing carbide inserts.
