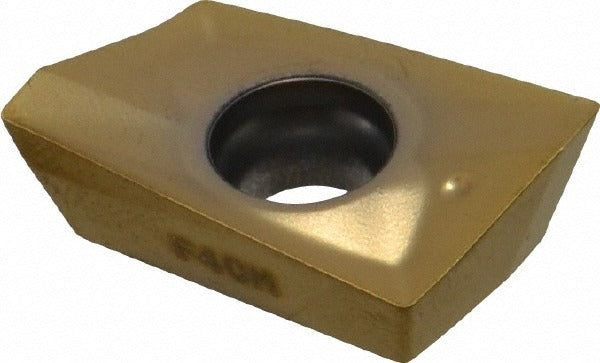

Seco 00014983 Milling Insert XOMX180604R-M10 F40M Carbide

Product Description

The SECO 00014983 is a solid carbide milling insert in the XOMX-18 series, designed for use in indexable milling cutters used across metalworking and machining operations. It carries the ANSI and ISO designation XOMX180604R-M10 and is finished with a PVD-applied TiAlN and TiN dual coating for extended tool life and heat resistance. The insert features a parallelogram shape with a positive 22-degree rake angle and a 15-degree relief angle, delivering clean, efficient cutting action. With 2 cutting edges and a honed edge style, it is suited for high-productivity milling passes on steel, cast iron, stainless steel, non-ferrous metals, and superalloys including titanium. Grade F40M with a fine-grain carbide substrate rounds out the core specification.

This insert is intended for professional machinists and tooling technicians running indexable face mills or shoulder mills in production or job-shop environments. It is a right-hand cutting insert held in the cutter body by screw. The M10 chip breaker geometry supports a wide range of workpiece materials and cut depths up to 0.6693 inches, making it a versatile choice for both roughing and semi-finishing passes. It is sold individually but must be ordered in multiples of 10. Compatible cutter series include R217.69-18 and R220.69-18.

Key Features

• Solid carbide, fine-grain substrate with PVD TiAlN and TiN dual coating for wear and heat resistance
• Parallelogram insert shape (XOMX style) with 90-degree included angle and positive rake geometry
• 2 cutting edges, right-hand orientation, screw-clamped mounting
• M10 chip breaker supports steel, stainless steel, cast iron, non-ferrous metals, and superalloys including titanium
• Maximum depth of cut and cutting edge effective length of 0.6693 inches
• Honed cutting edge style for improved edge stability and reduced micro-chipping

Compatibility

Designed for use with SECO cutter series R217.69-18 and R220.69-18 indexable milling bodies that accept XOMX-18 series inserts.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Before indexing or replacing inserts, ensure the machine spindle is fully stopped and locked out per your facility lockout/tagout procedure. Use the appropriate Torx or hex key specified for the cutter body to secure the clamping screw to the manufacturer-recommended feel without over-torquing. Inspect the insert pocket and seating surfaces for chips or debris before seating the new insert to ensure proper contact and runout.
