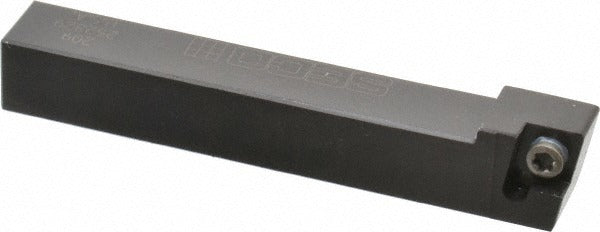

Seco 00013326 Rh Scgc Indexable Turning Toolholder

Product Description

The SECO 00013326 is a right-hand SCGC-style indexable turning toolholder designed for external turning operations on CNC lathes and turning centers. It features a 0.5 x 0.5 inch square shank and an overall length of 3.5 inches. The toolholder uses a screw-lock insert clamping method with a neutral rake angle of 0 degrees, accepting CCMT 32.52 inserts with a 0.375 inch inscribed circle. Constructed from steel, it suits a wide range of workpiece materials and is a reliable choice for machinists and tooling specialists setting up production or job-shop turning applications.

This toolholder is suited for right-hand cutting direction in standard external turning setups. It carries a 90-degree lead angle and a back-of-bar to cutting-edge distance of 0.625 inches. The universal material compatibility rating makes it usable across ferrous, non-ferrous, heat-resistant alloy, and non-metallic workpiece categories. It is appropriate for both production turning environments and general-purpose shop applications where CCMT-style inserts are the standard.

Key Features

• Right-hand cutting direction with SCGC toolholder style and 90-degree lead angle
• Screw-lock insert holding method provides secure, repeatable insert clamping
• Neutral rake angle (0 degrees) compatible with CCMT 32.52 inserts
• 0.5 x 0.5 inch square steel shank fits standard toolpost and turret pockets
• Universal primary workpiece material rating covers steel, cast iron, stainless, aluminum, high-temp alloys, and non-metallics
• Overall length of 3.5 inches with a head length of 0.62 inches

Compatibility

Accepts CCMT 32.52 inserts with a 0.375 inch inscribed circle. Compatible insert size code is CC325. Designed for use in turning operations where SCGC-style screw-lock holders with a 0.5 x 0.5 inch shank are specified.

Installation Notes

Installation is performed by a machinist or tooling technician. Ensure the lathe or turning center is fully powered down and the turret is locked before seating or removing the toolholder. Use the appropriate torque wrench when tightening the insert screw to manufacturer specification and verify insert seating before resuming cuts. Follow applicable shop safety procedures and machine tool manufacturer guidelines for toolholder installation.
