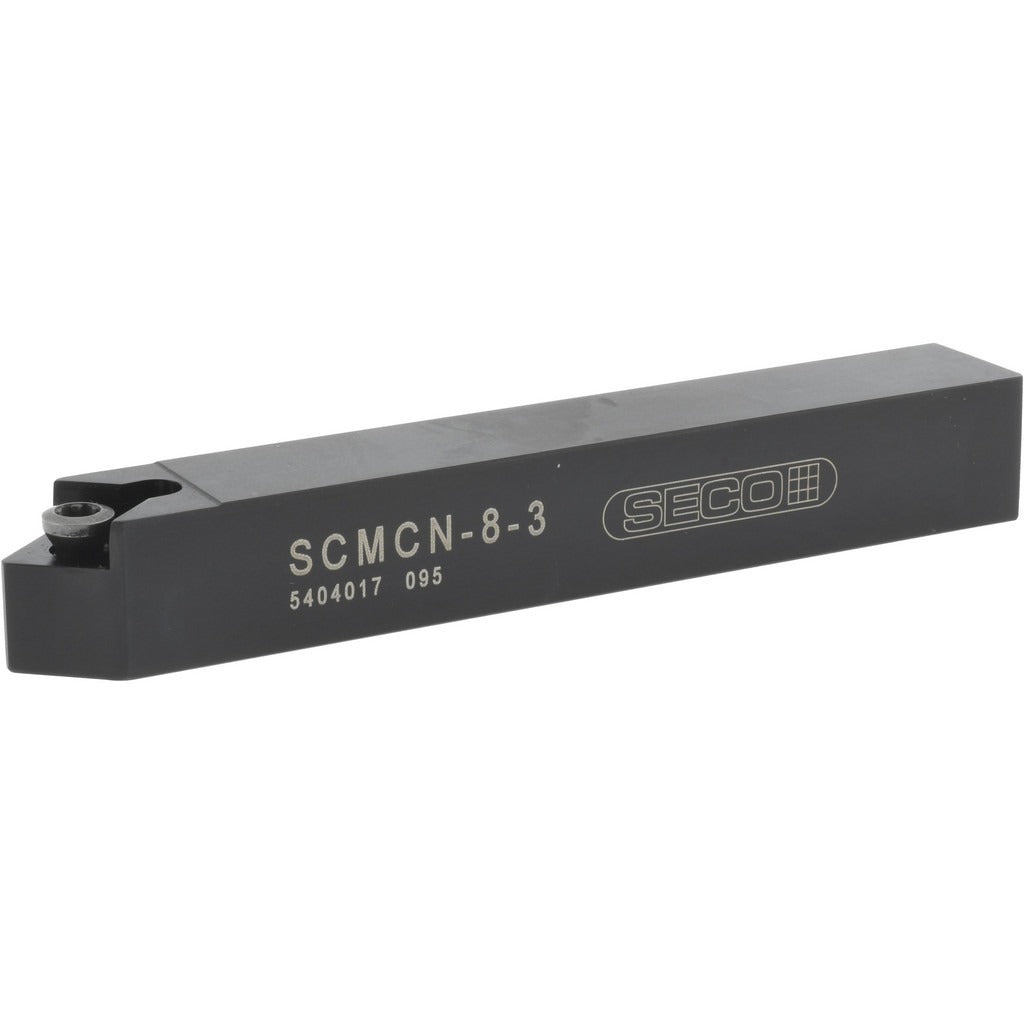

Seco 00013319 Indexable Turning Toolholder Neutral Rake

Product Description

The SECO 00013319 is a neutral-rake indexable turning toolholder in the SCMC toolholder style, designed for external turning operations on CNC and manual lathes. It features a 0.5-inch by 0.5-inch square shank and an overall length of 3.5 inches. The toolholder uses a screw-lock insert-holding method, securing CC-style inserts with reliable clamping force during interrupted and continuous cuts. With a neutral cutting direction, this holder suits straight turning passes where neither a right-hand nor left-hand orientation is required. The 0-degree rake angle keeps cutting geometry consistent with the insert grade selected. Licensed machinists, toolroom operators, and CNC setup technicians are the primary users.

This toolholder is suited for universal turning applications across a broad range of workpiece materials, including steel, stainless, cast iron, non-ferrous alloys, high-temperature alloys, and hardened materials, corresponding to ISO material groups H, K, M, N, P, and S. It fits production turning cells and job-shop lathes alike, wherever a compact 0.5-inch shank toolholder is required. The screw-lock clamping system makes insert indexing fast during production runs, minimizing downtime between tool changes.

Key Features

• SCMC toolholder style with neutral hand and 0-degree rake angle for straight turning passes
• Screw-lock insert holding method provides secure clamping and repeatable insert positioning
• Compatible with CCMT 32.52 inserts (CC..32.5. insert family, 3/8-inch inscribed circle)
• 0.5-inch x 0.5-inch square shank fits standard lathe tool blocks and quick-change toolposts
• Steel toolholder construction for rigidity and wear resistance in continuous production use
• Universal workpiece material compatibility across ISO H, K, M, N, P, and S groups

Compatibility

Designed to accept CCMT 32.52 inserts and the broader CC..32.5. insert family with a 3/8-inch inscribed circle. Manufacturer catalog reference SCMCN83 applies to this holder. Verify insert grade and geometry selection against the specific workpiece material and cutting conditions before use.

Installation Notes

This toolholder is installed by machinists and CNC setup technicians following standard lathe tooling procedures. Power down and lock out the machine spindle before mounting or indexing inserts. Use the correct Torx or hex key specified by the insert screw to achieve proper clamping torque without stripping the screw. Confirm tool centerline height and overhang before starting a cut to avoid chatter and premature insert wear.
