Seco 00013222 Mvtn Indexable Turning Toolholder Rh

Product Description

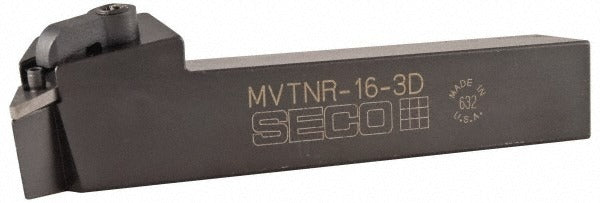

The SECO 00013222 is a right-hand MVTN-style negative rake indexable turning toolholder designed for lathe and turning center applications. It features a 1 x 1 inch shank and an overall length of 6 inches, with a head length of 1.71 inches. The toolholder accepts VN..33. series inserts held in place by a clamp and pin method, ensuring secure insert seating during heavy or interrupted cuts. With a negative rake angle, this holder is suited for materials across a broad hardness range. Licensed machinists and CNC lathe operators are the primary installers of this toolholder.

This toolholder is intended for turning operations on a wide range of workpiece materials, including steel, cast iron, stainless steel, non-ferrous metals, and high-temperature alloys, as indicated by its universal primary workpiece material designation covering material codes H, K, M, N, P, and S. A 27.5-degree lead angle influences chip flow and radial cutting force, making it appropriate for facing, profiling, and longitudinal turning. It is compatible with both manual and CNC lathes that accept a 1 x 1 inch square-shank toolholder in the appropriate tool block or turret position.

Key Features

• Right-hand cutting direction with MVTN toolholder style
• Accepts VN..33. inserts with compatible insert size code VN33 and inscribed circle of 0.375 inches
• Clamp and pin insert holding method for secure, repeatable seating
• Negative rake geometry suited for universal workpiece material applications
• Multiple Lock series design for rigid, stable insert clamping
• No coolant-through feature; external coolant application applies

Compatibility

Designed for use with VN..33. series inserts (compatible insert size code VN33, inscribed circle 0.375 inches). Accepts inserts across material codes H, K, M, N, P, and S for universal turning applications. Manufacturer catalog reference: MVTNR L163D.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Before mounting or indexing inserts, ensure the machine is powered off, the spindle is locked, and all rotating components have come to a full stop. Secure the toolholder firmly in the tool block or turret to the machine manufacturer's specified clamping requirements. Inspect the insert pocket and clamping components for wear or debris before each insert change.
