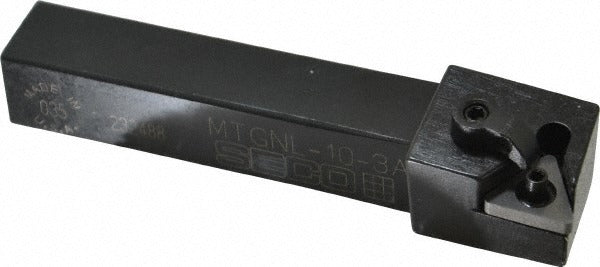

Seco 00013153 Lh Mtgn Indexable Turning Toolholder 5/8 in

Product Description

The SECO 00013153 is a left-hand MTGN-style indexable turning toolholder designed for external turning operations on CNC and manual lathes. Built on the Multiple Lock series, it secures inserts using a clamp and pin holding method, providing rigid, repeatable positioning during cutting. The toolholder accepts TN..33. series inserts with a 3/8-inch inscribed circle and operates with a negative rake angle, making it well suited for interrupted cuts and harder workpiece materials. The steel shank measures 0.625 inches wide by 0.625 inches tall with a 90-degree lead angle and an overall length of 4 inches.

This toolholder is intended for professional machining environments where consistent insert indexing and secure clamping are required. The 90-degree lead angle and right-hand cutting direction support facing and straight turning passes. The universal primary workpiece material compatibility covers a broad range of material groups, including steel, stainless steel, cast iron, non-ferrous materials, and heat-resistant superalloys. It is sized for lathes and turning centers that accommodate a 5/8-inch square shank toolholder. Coolant-through capability is not available on this holder.

Key Features

• Left-hand MTGN toolholder style with 90-degree lead angle for straight turning and facing
• Multiple Lock clamping system using clamp and pin for secure insert retention
• Negative rake geometry supports interrupted cuts and harder material applications
• Accepts TN..33. inserts with 3/8-inch (0.375 inches) inscribed circle
• Steel shank construction, 0.625 inches x 0.625 inches cross-section, 4 inches overall length
• Universal workpiece material compatibility across material groups H, K, M, N, P, and S

Compatibility

Designed to accept TN..33. series indexable inserts with a compatible insert size code of TN33 and a 3/8-inch inscribed circle. Refer to the SECO insert selection guide to confirm the specific insert grade and geometry for your workpiece material and cutting conditions.

Installation Notes

Installation should be performed by a qualified machinist familiar with indexable toolholder setup procedures. Ensure the machine spindle is fully stopped and the machine is in a safe, locked-out state before mounting or adjusting the toolholder. Seat the shank fully in the tool block or turret pocket and confirm insert seating before initiating a cut. Follow the machine manufacturer's torque guidelines for all clamping hardware.
