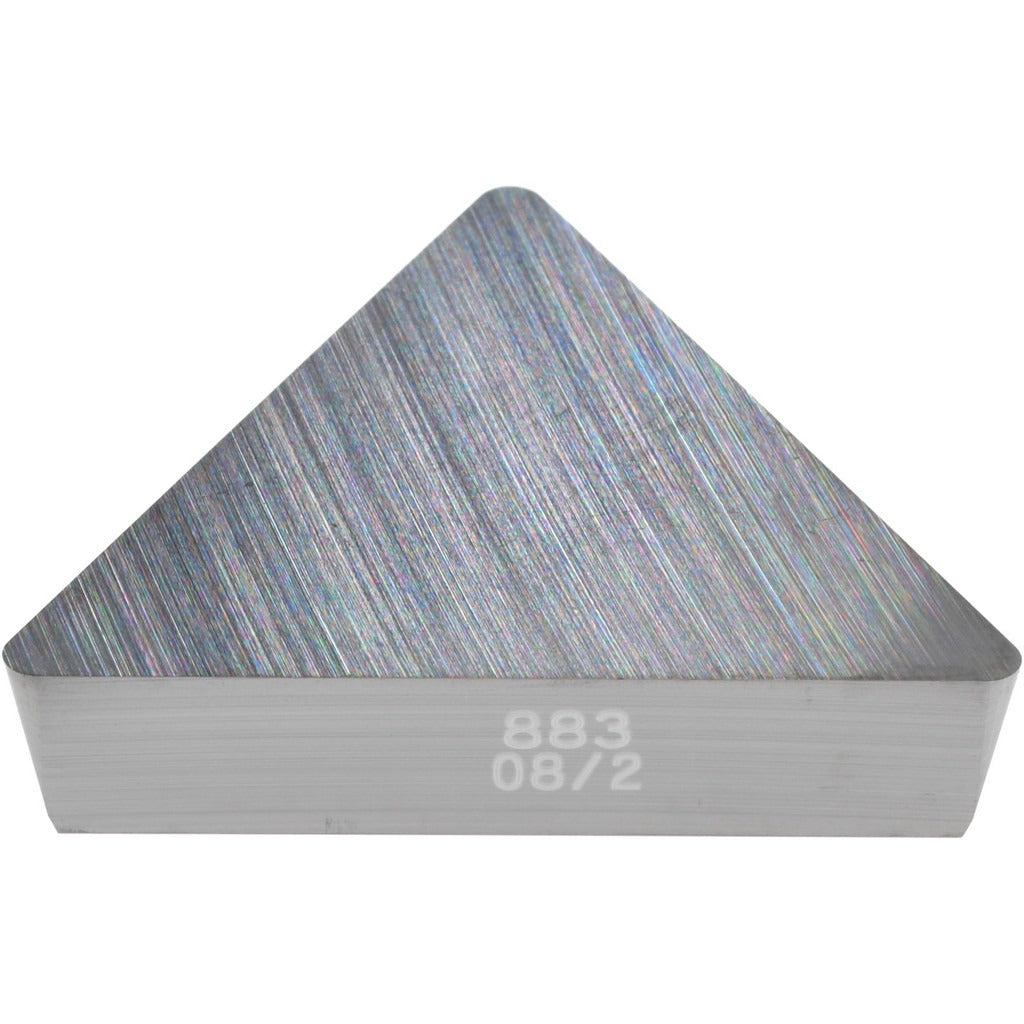

Seco 00008645 TPG432F 883 Carbide Turning Insert 1/2 in Ic

Product Description

The SECO 00008645 is a solid carbide, uncoated turning insert designed for precision metal cutting in demanding machining environments. Manufactured to ANSI and ISO standards, this TPG-style insert carries grade designation 883, engineered for high wear resistance to high toughness when working superalloys and titanium. The triangular insert shape provides three usable cutting edges, and the flat-top chip breaker geometry delivers a positive rake and positive side clearance for clean, efficient chip formation. With a 1/2-inch inscribed circle and a 3/16-inch thickness, this insert fits standard TPG-style toolholders used in production and job-shop turning operations. Licensed machinists and CNC operators install this insert in applications where workpiece material demands uncoated carbide for thermal stability.

This insert is suited for external turning, facing, boring, and back turning on superalloys and titanium as the primary workpiece material. Secondary workpiece compatibility extends to steel, cast iron, and non-ferrous materials per the secondary material codes. The flat-top design and honed cutting edge style make this insert a practical choice for finish and semi-finish passes where edge integrity and dimensional consistency are critical. The 883 grade sits within the S10, S20, and S30 material grade classifications, covering a broad range of superalloy cutting conditions from moderate to aggressive.

Key Features

• Solid carbide, bright uncoated construction for use in superalloy and titanium cutting where coatings may delaminate under high heat
• Three cutting edges per insert on a 60-degree triangle profile, maximizing cost-per-edge value
• Flat-top chip breaker geometry with positive rake for efficient chip evacuation and reduced cutting forces
• Honed cutting edge style reduces micro-chipping during interrupted or semi-continuous cuts
• 1/32-inch corner radius balances edge strength with surface finish requirements
• Clamp-style insert holding method; compatible with standard TPG-flat-top toolholder pockets
• Multi-use application: back turning, boring, facing, and turning in a single insert geometry

Compatibility

Designed for use in clamp-style toolholders accepting TPG-format inserts per ANSI code TPG432 and ISO code TPG220408. Fits standard TPG-flat-top pocket geometry. Verify toolholder pocket tolerance and seating clearance before installation.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Power down and lock out the machine spindle before seating or removing inserts. Use the appropriate torque wrench and manufacturer-specified clamp hardware when securing the insert to avoid seat distortion. Inspect the toolholder pocket for chips, burrs, or wear before inserting a new cutting edge, as a contaminated seat will compromise edge life and dimensional accuracy.
