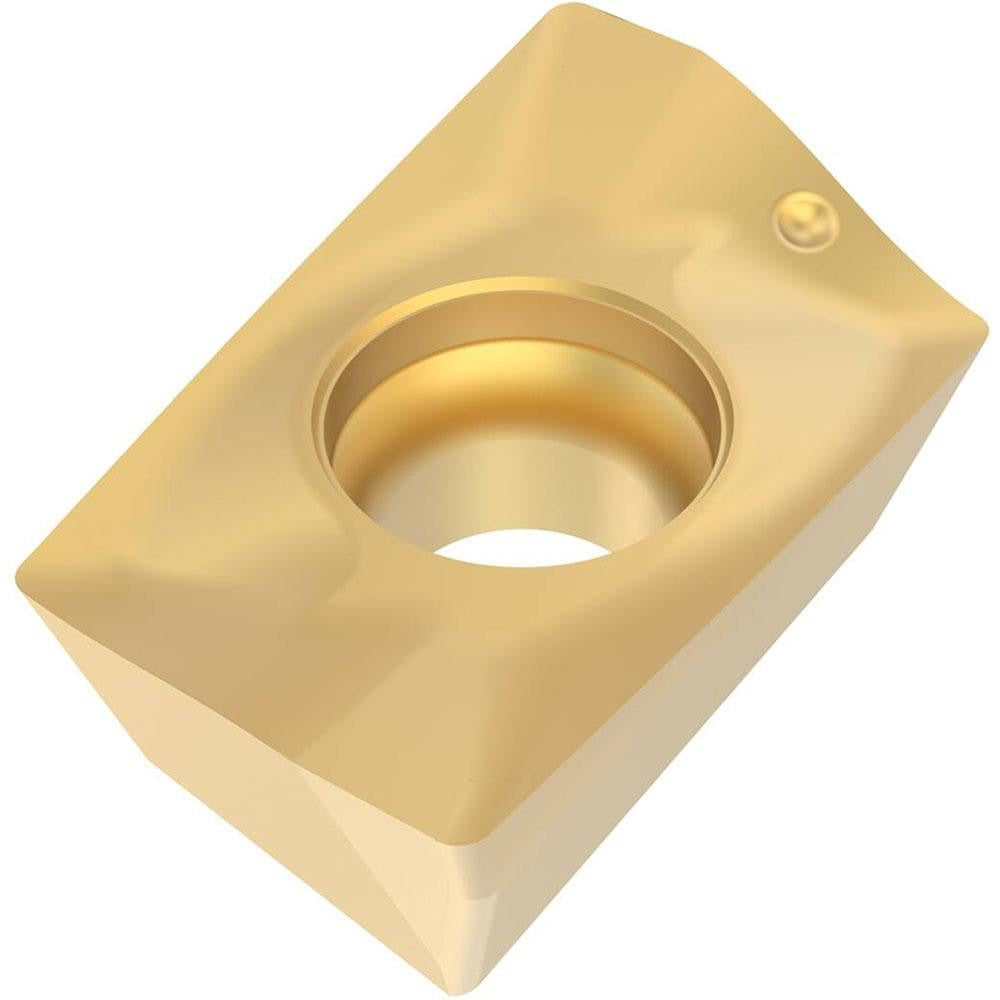

Seco 00005983 Milling Insert XOEX120416FR-E06 F40M

Product Description

The SECO 00005983 is a solid carbide milling insert in the XOEX-12 series, designed for high-performance metal removal in milling operations. It carries the manufacturer grade F40M with a TiAlN and TiN PVD coating applied over a fine-grain carbide substrate. The insert is parallelogram-shaped with a 90-degree included angle, a positive 26.3-degree rake angle, and a sharp cutting edge style that reduces cutting forces and heat generation. With a maximum depth of cut of 0.4724 inches and two usable cutting edges, it suits demanding roughing and semi-finishing passes on a variety of workpiece materials. Licensed machinists and tooling technicians install this insert into compatible indexable milling cutters.

This insert is suited for milling steel, stainless steel, cast iron, non-ferrous metal, superalloys, and titanium in both primary and secondary material applications. It is intended for use in screw-on indexable insert cutter bodies and fits right-hand configurations. Typical applications include face milling and shoulder milling operations in production machining environments across job shops and manufacturing facilities running a range of workpiece materials from low-carbon steel to difficult-to-machine superalloys and titanium alloys.

Key Features

• F40M grade fine-grain solid carbide substrate for toughness and wear resistance
• TiAlN and TiN PVD coating for thermal protection and extended tool life
• Positive 26.3-degree rake angle with sharp cutting edge style reduces cutting forces
• 0.0630-inch corner radius balances edge strength with surface finish quality
• Two cutting edges per insert for indexable value
• Compatible with R217.69-12 and R220.69-12 cutter series
• E06 chip breaker geometry for effective chip control across multiple materials

Compatibility

Compatible with SECO cutter series R217.69-12 and R220.69-12. Designed for use in screw-held indexable milling cutter bodies accepting XOEX120416FR-E06 style inserts.

Installation Notes

Installation is performed by qualified machinists or tooling technicians using the appropriate Torx or hex key to seat and secure the insert screw. Ensure the cutter body pocket and seating surface are clean and free of chips or debris before indexing or replacing the insert. Power down and lock out the machine spindle before handling any indexable insert. Do not exceed the cutter body manufacturer's recommended spindle speed or feed rate for this insert size and grade.
