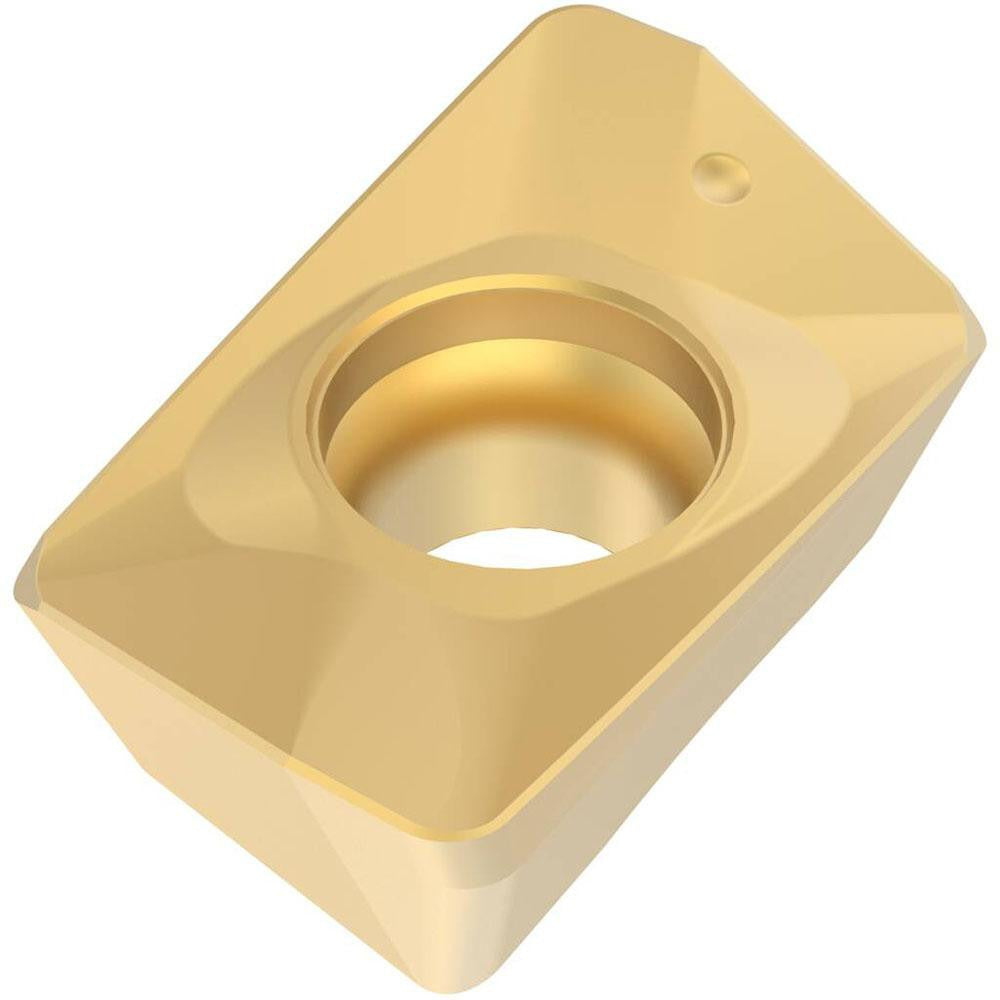

Seco 00005979 Milling Insert XOMX120408TR-M12 F40M Carbide

Product Description

The SECO 00005979 is a solid carbide milling insert carrying the ANSI and ISO designation XOMX120408TR-M12 in manufacturer grade F40M. Designed for indexable milling operations, this single-sided parallelogram-style insert features a TiAlN and TiN dual-layer coating applied via PVD process, delivering wear resistance and thermal stability at the cutting edge. The insert uses a T-Land cutting edge style with a positive 10.4-degree rake angle and 15-degree relief angle, producing clean, efficient chip flow across a range of workpiece materials. It is held in the cutter body by a screw-clamp method and is right-hand oriented. Licensed machinists and CNC milling technicians are the primary installers.

This insert is suited for face milling, shoulder milling, and general-purpose indexable milling applications in production and job-shop environments. Primary workpiece materials include steel, cast iron, and superalloys and titanium. Secondary workpiece materials include cast iron and non-ferrous metals. The M12 chip breaker geometry supports medium cutting conditions across these material groups. The insert is compatible with SECO cutter series R217.69-12 and R220.69-12.

Key Features

• Solid carbide fine grain substrate with TiAlN and TiN PVD coating for extended tool life
• T-Land cutting edge style with positive rake for reduced cutting forces on steel and cast iron
• Two cutting edges per insert, right-hand orientation
• M12 chip breaker geometry suited for medium milling conditions
• Screw-held mounting for positive insert location in the cutter pocket
• Meets ISO standards; ANSI and ISO code XOMX120408TR-M12

Compatibility

Compatible with SECO cutter series R217.69-12 and R220.69-12. Intended for use in applications involving steel, stainless steel, cast iron, non-ferrous metals, and superalloys and titanium.

Installation Notes

Insert seating and replacement should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before indexing or replacing inserts. Use the correct torx or hex key to the cutter body manufacturer torque specification for the screw-clamp holding method. Inspect the insert pocket and seating surface for chips or debris before installing the new insert to ensure proper seating and runout.
