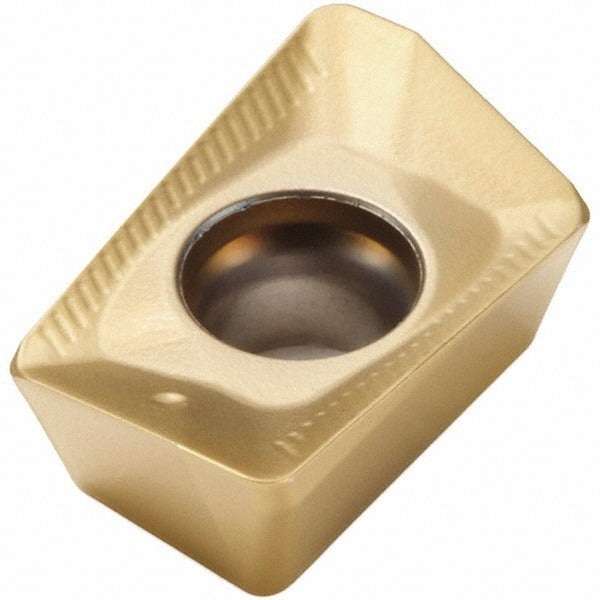

Seco 00005973 Milling Insert XOMX120408TR-ME08 F40M Carbide

Product Description

The SECO 00005973 is a solid carbide milling insert in the XOMX-12 series, identified by ANSI and ISO code XOMX120408TR-ME08. It features a parallelogram shape with a 90-degree included angle, positive rake geometry at 20.1 degrees, and a T-Land cutting edge style. The insert carries an F40M manufacturer grade with a fine grain carbide substrate and a PVD-applied TiAlN and TiN dual coating for extended wear resistance. With 2 cutting edges and a right-hand orientation, it is designed for productive milling at a maximum depth of cut of 0.4567 inches. Installation is performed by licensed machining professionals and CNC tooling technicians.

This insert is suited for milling applications across a broad range of workpiece materials including steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium. Primary material codes are P, K, and S. Secondary material codes are K and N. The ME08 chip breaker geometry supports controlled chip evacuation across these material groups. The insert is held in the cutter body by a screw clamping method and is compatible with SECO cutter series R217.69-12 and R220.69-12. Typical applications include face milling and shoulder milling on both CNC machining centers and manual milling setups in industrial production environments.

Key Features

• Solid carbide fine grain substrate with PVD-applied TiAlN and TiN dual coating for heat and wear resistance
• F40M manufacturer grade optimized for steel, cast iron, superalloys, and titanium
• Positive rake angle of 20.1 degrees with T-Land cutting edge style for controlled engagement
• ME08 chip breaker for effective chip control across mixed material applications
• 2 right-hand cutting edges with a maximum depth of cut of 0.4567 inches
• Screw-held single-sided insert for secure seating and repeatable positioning

Compatibility

Compatible with SECO cutter series R217.69-12 and R220.69-12. ANSI and ISO designation XOMX120408TR-ME08. Minimum order quantity is 10 units; package quantity is 1.

Installation Notes

This insert is installed by qualified machinists or CNC tooling technicians. Power down and lock out the spindle before seating or replacing inserts. Use the appropriate torx or hex key to secure the clamping screw to the cutter body per the toolholder manufacturer guidelines. Inspect the insert pocket and clamping screw for wear or debris before installing a new insert.
