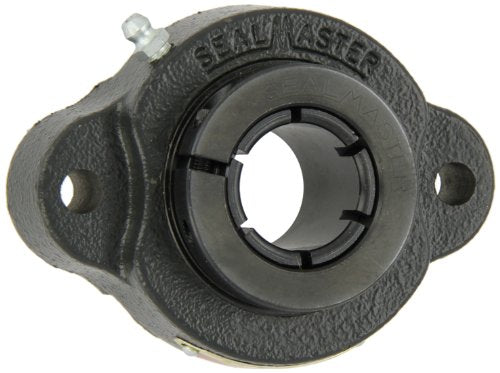

SealMaster TFT-23 Standard Duty Flange Unit Two Bolt Regreasable Contact Seals Cast Iron Housing 1.4375 Inches Bore

Product Description

The SealMaster TFT-23 standard-duty flange unit integrates robust design with high functionality. Ideal for industrial and commercial applications, this flange unit features a cast iron housing with a 1.4375-inch bore diameter, ensuring durable support and reliability.

• Equipped with two bolt holes for secure mounting
• Features contact seals and a Skwezloc collar for operational reliability
• Regreasable design with an external grease fitting to maintain lubrication

Product Highlights

This SealMaster flange unit is specifically designed to meet the needs of moderate radial loads and light to moderate thrust applications. Manufactured from vacuum degassed 52100 chrome steel, the bearings are coated with black oxide for excellent corrosion resistance.

Product Information

Standard Information

• Brand: SealMaster
• MPN TFT-23

Technical Specifications

• Bearing Type: Standard duty, deep-groove ball bearing insert
• Material: Cast iron housing, double-sealed bearing
• Bore Diameter: 1.4375 inches

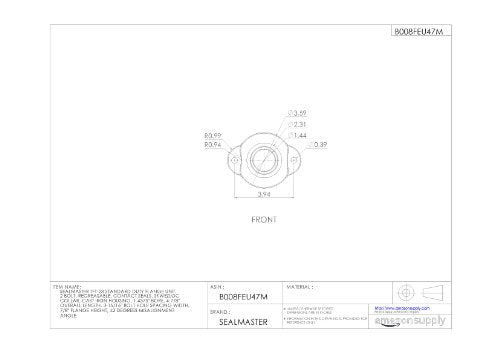

• Overall Length: 4-7/8 inches
• Bolt Hole Spacing Width: 3-15/16 inches
• Flange Height: 7/8 inch
• Misalignment Angle: ±2 degrees
