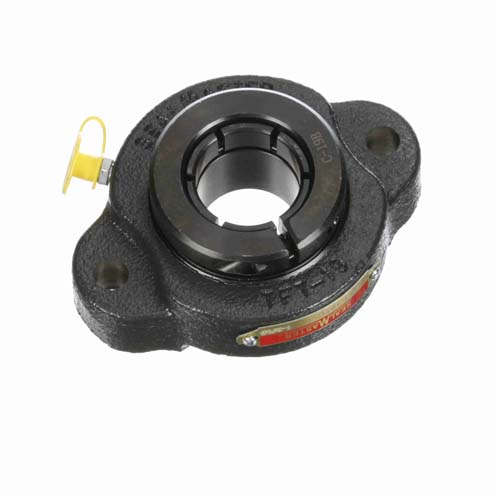

Sealmaster TFT-19TC-1 Flange-Mount Ball Bearing Unit - 1-3/16 in Bore - 2-Bolt Flange Mount - Replacement MPN

Product Description

The Sealmaster TFT-19TC-1 is a flange-mount ball bearing unit designed for reliable performance in various applications. This unit features a one and three-sixteenth inch bore and a two-bolt flange mount, making it suitable for standard duty operations. The cast iron housing ensures durability while the concentric collar locking mechanism provides a secure fit.

• Powder coated epoxy cast iron housing for enhanced protection
• Unique retainer design allows for superior grease circulation
• Single lip contact seal for optimal protection against contaminants

Product Highlights

Ideal for industrial environments, this bearing unit is built to handle high speeds while maintaining excellent lubrication retention.

Product Information

Standard Information

• Brand: Sealmaster
• Country of Origin: United States

Technical Specifications

• MPN: TFT-19TC-1
• Type of Bearing: Ball
• Bore Diameter: 1-3/16 in
• Overall Length: 4.4380 in
• Overall Width: 3.2500 in
• Overall Height: 1.5740 in
• Weight: 2.13 lbs
• Max RPM: 5450 rpm
• Radial Dynamic Load Capacity: 4381 lbf
• Radial Static Load Capacity: 2567 lbf
• Max Operating Temperature: 220 °F
• Operating Temperature Range: -20° to 220 °F
• Duty Type: Standard Duty
• Seal Type: Contact Seal
• Lubricant: Lithium Complex NLGI 2 Grease
• Locking Device: Concentric Collar
• Replacement Bearing: 2-13TC
