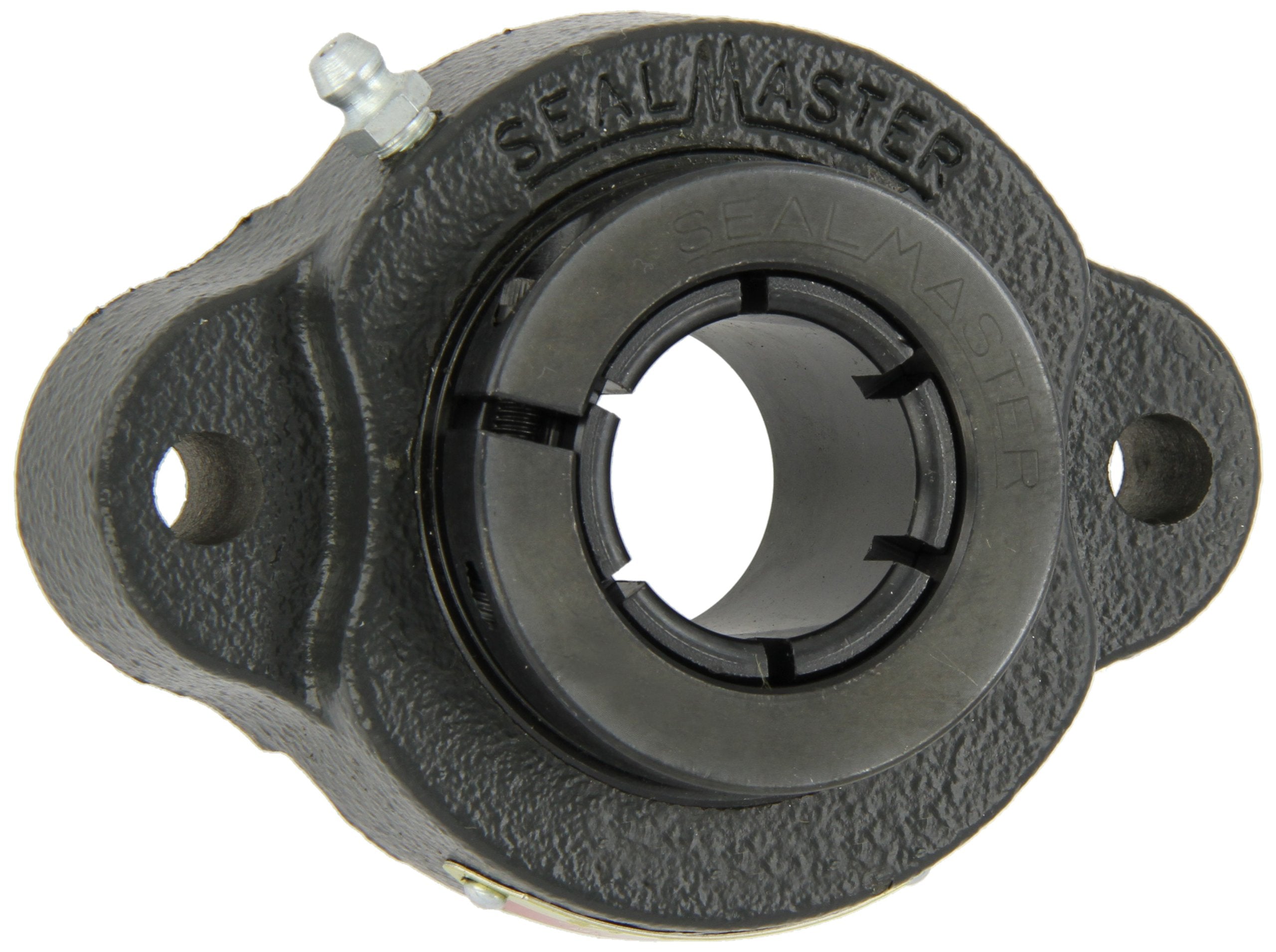

SealMaster TFT-19 Standard Duty Flange Unit 2 Bolt Cast Iron Housing 1-3/16 Bore

Product Description

The SealMaster TFT-19 flange unit is a robust and reliable component made from cast iron, tailored for standard duty applications. It features two bolt holes, making it suitable for air-handling applications. It is designed for secure, perpendicular mounting onto bearing surfaces.

• Constructed from cast iron with Skwezloc collar for sturdy and vibration-free performance.
• Features regreasable contact seals that retain lubricant and protect against contaminants.
• Equipped with a grease fitting on the housing for easy maintenance.

Product Highlights

SealMaster's TFT-19 flange unit is renowned for its durability and adaptability in various industrial settings such as construction machinery, conveyors, and processing equipment.

Product Information

Standard Information

• Brand:SealMaster
• MPN: TFT-19

Technical Specifications

• Material: Cast Iron
• Bore Size: 1-3/16 inches
• Overall Length: 4-7/16 inches>(h4>
• Bolt Hole Spacing Width: 3-9/16 inches
• Flange Height: 13/16 inches
• Misalignment Angle: ±2 degrees
