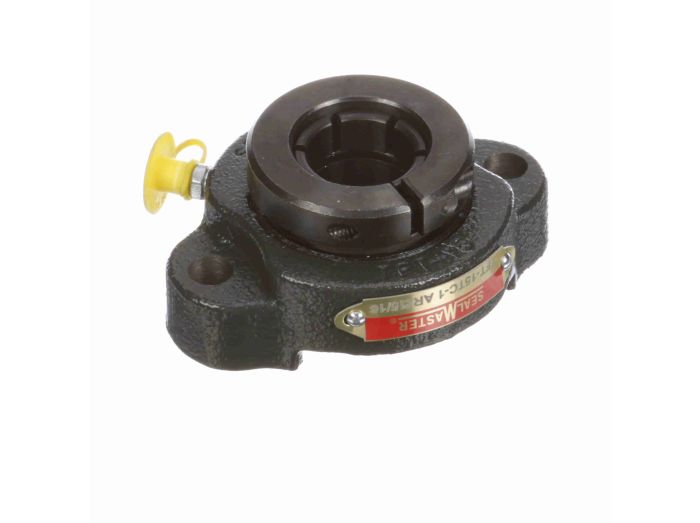

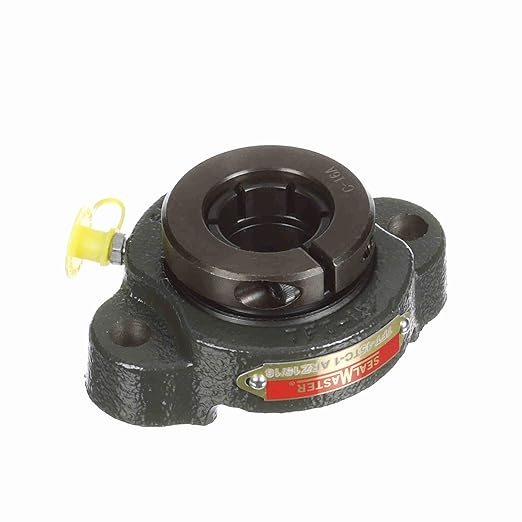

Sealmaster TFT-15TC-1-ARZ Mounted Cast Iron Two Bolt Flange Ball Bearing 0.9375 in

Product Description

The Sealmaster TFT-15TC-1-ARZ is a mounted cast iron two bolt flange ball bearing. It features 52100 bearing steel and a black oxide finish. This standard-duty component includes a concentric lock and a straight bore shape, with a single lip contact seal. The bearing can handle ±2.0° misalignment and is designed for relubrication.

• Made with powder-coated epoxy cast iron housing and extended inner ring bearings.
• Uses Skwezloc® concentric locking for improved alignment.
• Employs a land riding retainer design for effective grease circulation.

Product Highlights

This Sealmaster flange ball bearing is suitable for static applications needing a dependable mounted bearing solution.

Product Information

Standard Information

• Manufacturer: Sealmaster
• Brand: Sealmaster

Technical Specifications

• Bolt Size: 3/8 in
• Overall Width: 2.75 in
• Overall Height: 1.498 in
• Overall Length: 3.75 in
• Bore Diameter: 0.9375 in
• Foot Height: 0.69 in
• Length Through Bore: 1.48 in
• Bolt Spacing: 3.0000 in
• Rolling Element: Ball Bearing
• Pilot Configuration: No Pilot
• Housing Construction: One Piece
• Bore Shape: Straight
• Housing Color: Black
• Misalignment Type: Static Only
• Outer Ring Land Profile: Standard
• Cage Material: PPS - Polyphenylene Sulfide
• Housing Type: Flange, Two Bolt
• Seal Type: Single Lip Contact Seal
• Housing Style: Flange Block
• Setscrew Torque: 70 in/lbs
• Locking Collar Outside Diameter: 1.98 in
• Inner Race Heat Treat Method: Zone-Hardened
• Ability to Relubricate: Yes
• Maximum Speed: 6350 rpm
• Insert: 2-15TC
• Fixed vs. Expansion: Fixed
• Housing Material: Cast Iron
• Bearing Insert Material: 52100 Bearing Steel
• Max Operating Temperature: 220 °F
• Bearing Insert Finish: Black Oxide
• Static Load Rating: 1,651 lb
• Cage Type: Land Riding Retainer
• Bearing Type: Ball Bearing
• Lubricant: Lithium Complex NLGI 2 Grease
• Grease Fitting Thread Size: 1/4-28
• Misalignment Capability: ±2.0° Misalignment - Static Only
• Dynamic Load Rating: 2,801 lb
• Shaft Locking Type: Concentric
• End Cap Available: No
• Size Code: 2-015
• Radial Clearance: Standard
• Housing Coating: Powder Coated
• Inner Ring Outside Diameter: 1.375 in
