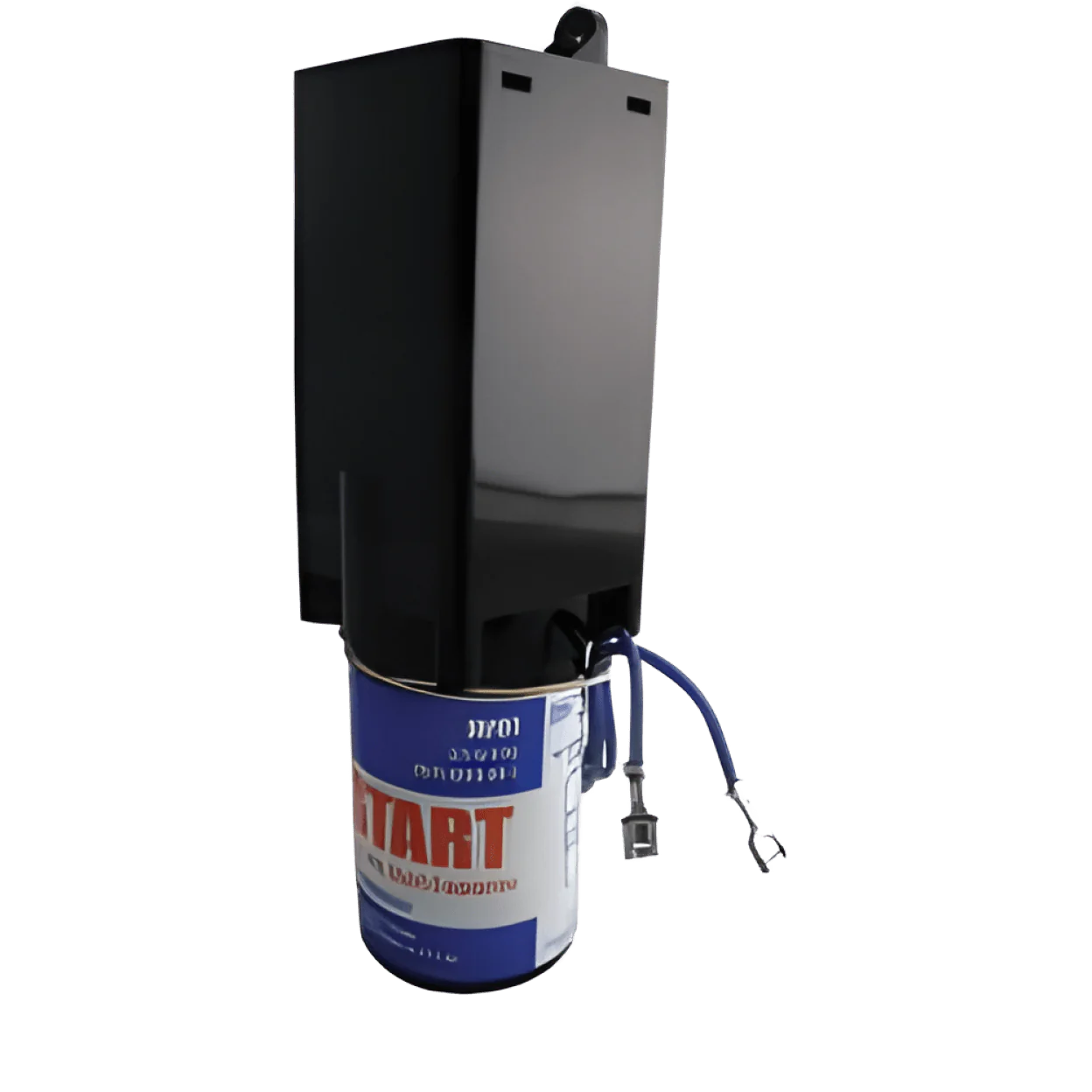

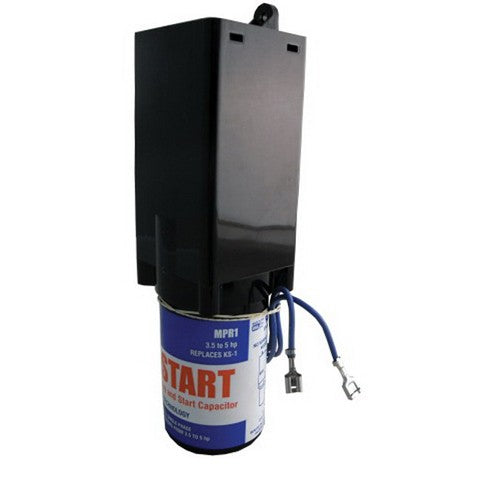

Sealed Unit Parts/Supco MPR1 Supco 2-Wire Hard Start Kit 3.5 - 5 HP 208 - 265V

Product Description

The Sealed Unit Parts/Supco MPR1 is a 2-wire hard start kit designed for use with compressors ranging from three and a half to five horsepower. It functions effectively with voltage ratings between two hundred eight and two hundred sixty-five volts. This kit is suitable for various compressor types including reciprocating, scroll, and rotary compressors.

• 270 to 324 uF capacitor size
• Mechanical relay for reliable performance
• Temperature range from -67 to 185 degrees Fahrenheit

Product Highlights

This hard start kit addresses the high power demand during the start-up phase of HVAC systems, which can cause strain on electrical components.

Product Information

Standard Information

• Manufacturer: Sealed Unit Parts/Supco
• Part Number: MPR1

Technical Specifications

• Voltage Rating: 208/265V
• Capacitor Size: 270 to 324 uF
• Compressor Size: 3.5 to 5 HP
• Phase: 1
• Frequency: 60 Hz
• Relay Type: Mechanical
• Temperature Range: -67 to 185 Deg F
• For Use With: Reciprocating, Scroll, and Rotary Compressors
• Standards: UL E146162
