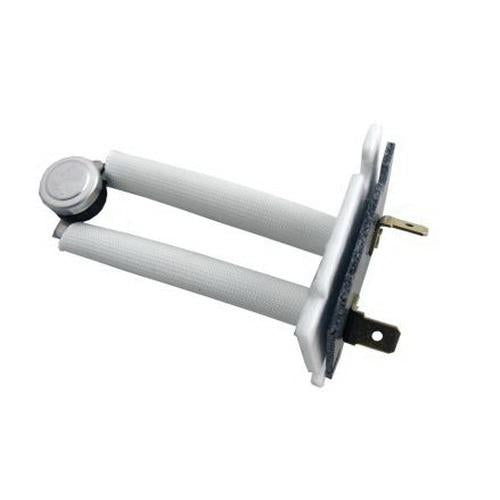

SEALED UNIT PARTS SHL512 Plenum Thermostat 170 Open 150 Close

Product Description

The SEALED UNIT PARTS SHL512 Plenum Thermostat is designed for effective temperature management. This thermostat operates at 120/240 VAC and features a single-pole single-throw (SPST) switch. It opens at 170 degrees Fahrenheit and closes at 150 degrees Fahrenheit. With a range of applications, it is suitable for HVAC systems where reliable temperature control is needed.

• Operating Voltage: 120/240 VAC
• Temperature Control: Opens at 170 degrees Fahrenheit, Closes at 150 degrees Fahrenheit
• Durable Bi-Metal design

Product Highlights

This thermostat is crucial for maintaining the efficiency of heating and cooling systems.

Product Information

Standard Information

• Product Type: Limits & Roll Outs
• Power Rating: 15 A at 120 VAC, 10 A at 240 VAC

Technical Specifications

• Insertion Length: 3.12 inches
• Width: 1.625 inches
• Height: 1.44 inches
• Locked Rotor Inductive Current: 6 A at 240 VAC
• Pilot Duty: 125 V-A
