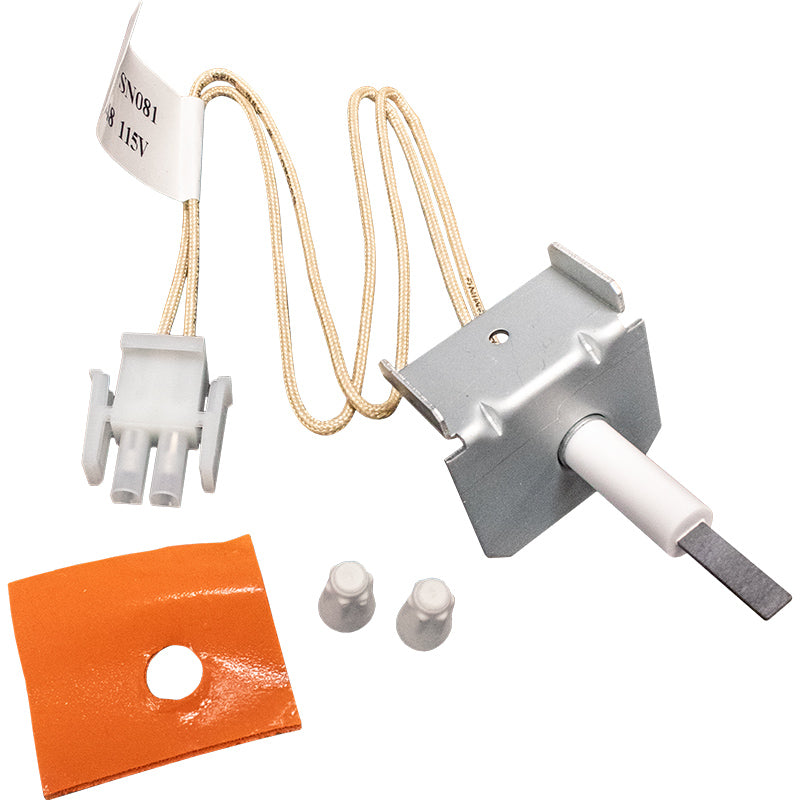

Sealed Unit Parts Co SSN081KS Furnace Igniter

Product Description

The Sealed Unit Parts Co SSN081KS furnace igniter is made from silicon nitride, specializing in gas lighting tasks. It operates at 120 VAC with a cold resistance ranging from thirty-four to sixty-four Ohms at seventy-five degrees Fahrenheit with a variance of ten degrees. The igniter reaches its working temperature in less than seventeen seconds when supplied with one hundred twenty volts, maintaining a steady state current between zero point eight and two Amps.

• Facilitates gas ignition in heating systems.
• Operates with low power consumption.
• Reaches temperature quickly for efficient operation.

Product Highlights

This igniter provides reliable functionality for heating systems, ensuring quick gas ignition.

Product Information

Standard Information

• Brand: Sealed Unit Parts Co
• MPN: SSN081KS

Technical Specifications

• Cold Resistance: 34-64 Ohms at 75F +/- 10F
• Steady State Current: 0.8 - 2 Amps at 120 VAC
• Voltage: 120 VAC
• Time to Temperature: Less than 17 seconds at 120 +/- 1 VAC
• Minimum Temperature: 2192F/1200C at 98 VAC
• Maximum Temperature: 2732F/1500C at 132 VAC
