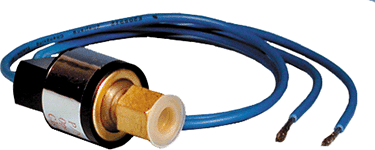

Sealed Unit Parts Co - SLP1535 Pressure Switches Low Pressure SPST Open on Fall 15 psi/35 psi

Product Description

The Sealed Unit Parts Co SLP1535 is a pressure switch designed for use in refrigeration, air conditioning, and heat pump systems. It operates with a low pressure that opens at fifteen psi and closes at twenty-five psi. This device is equipped with tamper-proof features and utilizes 18 leads for easy connections.

• For refrigeration, air conditioning, and heat pump systems
• Pressure range: 0 to 650 psi
• 1/4 Female SAE connection

Product Highlights

This pressure switch monitors the system pressure to ensure optimal functionality. It is rated for various voltages, suitable for both residential and commercial applications.

Product Information

Standard Information

• Brand: Sealed Unit Parts Co
• Part Number: SLP1535

Technical Specifications

• Open Pressure: 15 psi
• Close Pressure: 35 psi
• Voltage Rating: 24/120/240V
• Burst Pressure: 5,000 psi
• Life @ Rated Load: 100,000 cycles
• Switching Type: SPST
• Connection Type: 1/4 Female SAE
