Sealed Unit Parts Co FB701 Frostbite Aluminum Radiator 4 Row No Replacement MPN

Product Description

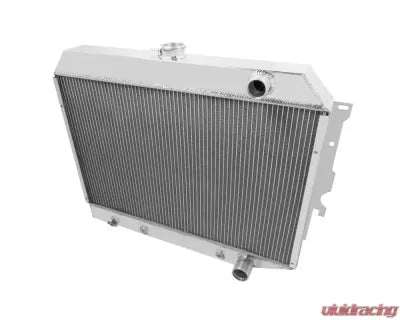

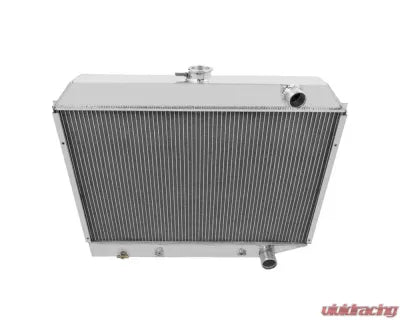

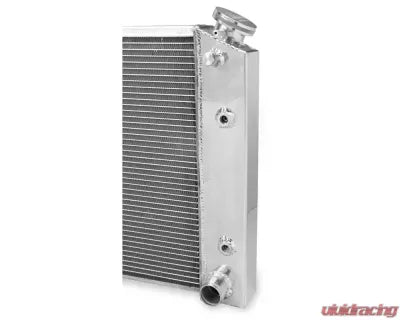

The Sealed Unit Parts Co Frostbite Aluminum Radiator FB701 is suitable for various vehicle applications including GM, Ford, Dodge, Chrysler, Jeep, and LS-Swap. This radiator comes with a single pass design featuring a four-row core with cooling rows of eleven-sixteenths diameter. Made from aircraft-quality aluminum, it allows for weight savings while ensuring durability.

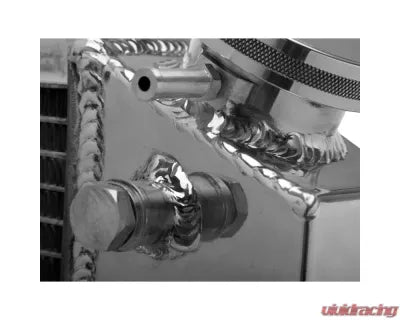

• Includes a billet aluminum filler neck

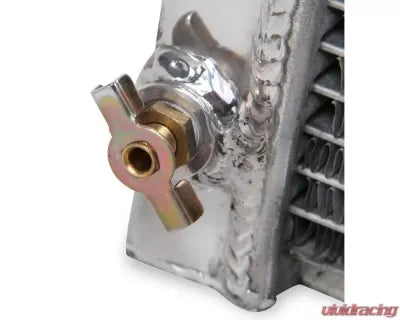

• OEM-style brass petcock for reliable performance
• High-performance radiator cap rated at sixteen pounds

Product Highlights

This radiator offers high-efficiency cooling thanks to its enhanced cooling fin design and features 100% TIG welded seams for added strength.

Product Information

Standard Information

• Brand: Frostbite
• Product Type: Radiator

Technical Specifications

• Number of Passes: Single
• Cooling Row Diameter: 11/16 inch
• Core Dimension: 17 inches x 26 inches
• Core Thickness: 2.76 inches
• Flow Style: Cross Flow
• Hose Location Inlet: Passenger side
• Hose Location Outlet: Passenger side
• Inlet Size: 1-1/2 inch
• Outlet Size: 1-3/4 inch
• Overall Dimension: 23.5 inches x 29.125 inches
• Rows: 4
• Transcooler Provision: 1/8-27 NPT
