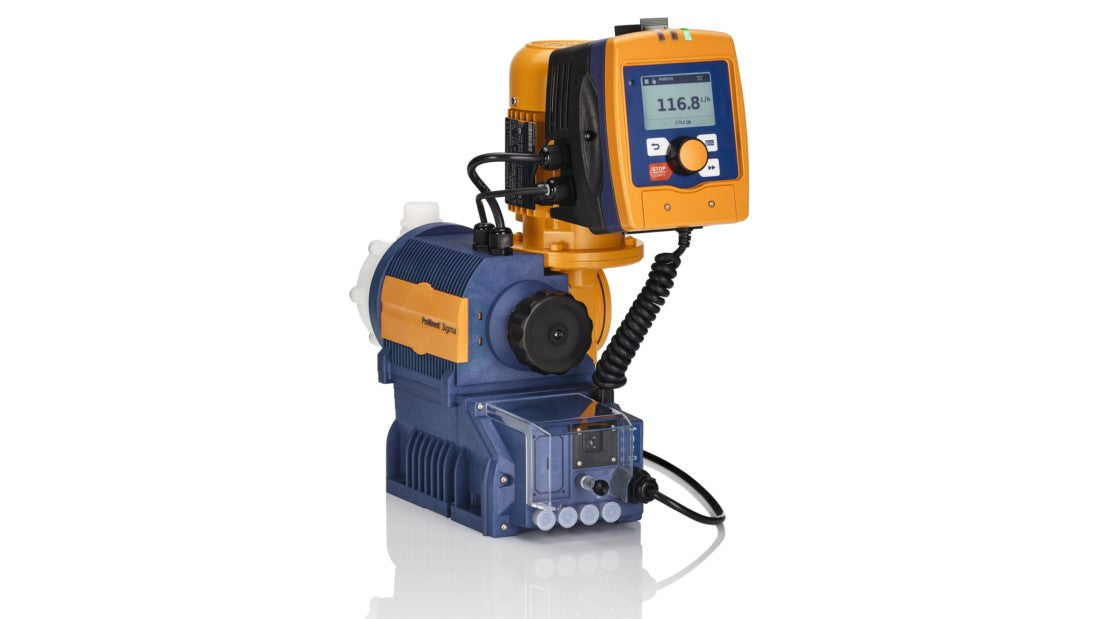

Sealed Unit Parts 1CB-EFF Motor-Driven Metering Pump Sigma X Control Type – Sigma/ 1 - S1Cb

Product Description

The Sealed Unit Parts 1CB-EFF is a motor-driven metering pump featuring the Sigma X control type, ideal for various applications in pumping solutions. This pump offers a capacity range from twenty-one to one thousand forty liters per hour. It incorporates essential safety features and effective control mechanisms for reliable operation.

• Patented multi-layer safety diaphragm with optical signaling.
• Integrated relief valve prevents overloading.
• External control is adjustable via potential-free contacts or a 0/4-20 mA signal.

Product Highlights

This pump is designed for performance and user safety, making it suitable for complex metering tasks.

Product Information

Standard Information

• Power Supply: 1-phase, 100 – 230 V ±10%, 50/60 Hz
• Degree of Protection: IP 65

Technical Specifications

• Capacity Range S1Cb: 21 – 117 l/h, 12 – 4 bar
• Stroke Length: 4 mm
• Stroke Length Adjustment Range: 0 – 100%
• Precision: ±1%
• Wetted Materials: PVDF, stainless steel 1.4571/1.4404
• Housing: Fiberglass-reinforced plastic
• Connector: for 2-stage level switch
• Custom Designs: Available on request
