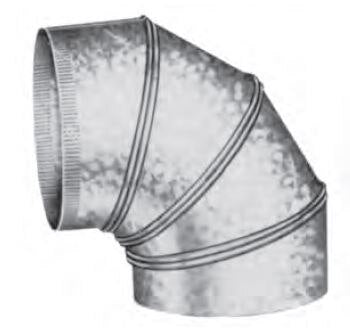

Seal-tite ELP-2604 Handcrafted Elbow 4 Inch 26 Gauge

Product Description

The SEAL-TITE ELP-2604 is a handcrafted galvanized steel duct elbow designed for professional HVAC ductwork installations. Built from 26-gauge galvanized steel, it provides a 4-inch diameter transition with factory-formed geometry that delivers consistent, airtight connections without the need for field fabrication. Fully hemmed collars on both ends ensure a tight fit and reduce air leakage at the joint. This elbow is intended for licensed HVAC technicians and sheet metal contractors working on residential and light commercial forced-air systems where precise directional changes in duct runs are required.

The ELP-2604 is suited for installations where tight spatial constraints demand reliable pre-formed elbows rather than custom-cut field pieces. Its ready-to-install construction supports faster assembly and helps maintain code-compliant airflow routing in supply and return duct systems. Typical applications include branch takeoffs, trunk transitions, and directional changes within confined mechanical rooms, attic runs, and crawl space duct layouts.

Key Features

• 26-gauge galvanized steel construction for corrosion resistance and structural rigidity
• 4-inch diameter for compatibility with standard residential duct sizing
• Fully hemmed collars for airtight connections and reduced air leakage
• Factory-formed geometry eliminates field fabrication and guesswork
• Ready-to-install design reduces labor time during duct assembly

Compatibility

Designed as an OEM-style replacement and new-installation fitting for standard 4-inch round duct systems in residential and light commercial HVAC applications.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified sheet metal contractor in accordance with applicable mechanical codes. Power down the air handling system before connecting or modifying any duct section. Secure the elbow using sheet metal screws and seal all joints with UL 181-listed duct tape or mastic sealant to maintain system integrity and code compliance.

Technical Specifications

• Diameter: 4 inches
• Gauge: 26 gauge
• Material: Galvanized steel
• Collar Type: Fully hemmed

Standard Information

• Brand: SEAL-TITE
• Manufacturer Part Number: ELP-2604
