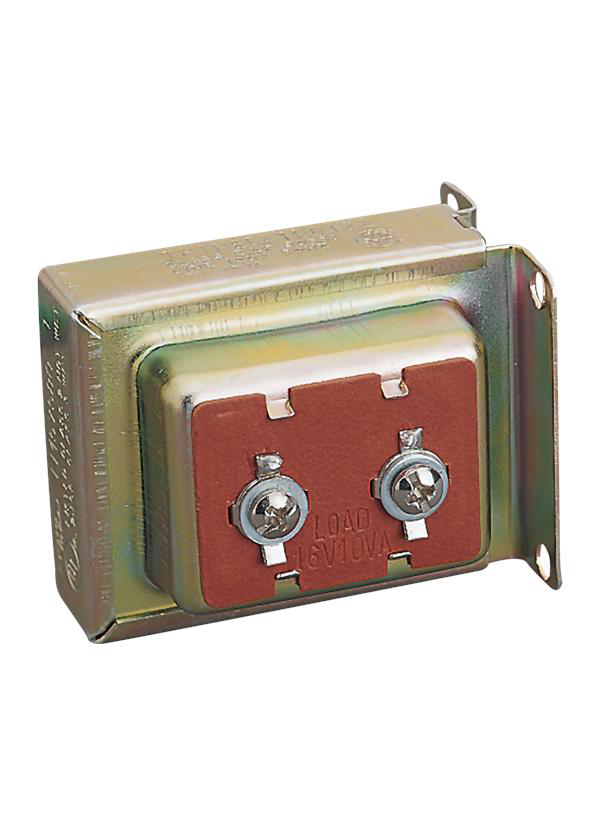

Seagull Lighting 9647 Remote Indoor Transformer 16V 10VA

Product Description

The SEAGULL LIGHTING 9647 is a remote indoor transformer rated at 16 volts and 10 VA, designed to power LED address wall lights as part of a low-voltage exterior lighting system. Installed indoors and wired to the address light fixture outside, it provides a stable 16-volt output that keeps house numbers illuminated day and night. Electricians and lighting installers commonly handle this type of low-voltage transformer work. The unit is intended for indoor mounting and connects to the address light via a terminal block or compatible wiring method.

This transformer is suited for residential applications where a dedicated low-voltage power source is needed for exterior address lighting. It is specifically matched to LED address wall light systems that require a 16-volt, 10 VA supply. Typical installations place the transformer near the entry panel or in a protected indoor location, with a low-voltage run to the exterior fixture. It is not intended for outdoor exposure or direct burial.

Key Features

• 16-volt output rated for low-voltage address lighting systems
• 10 VA capacity sized for LED address wall light loads
• Remote indoor mounting keeps the transformer protected from weather
• Terminal block connection simplifies field wiring to the exterior fixture
• Compatible with systems that accept a 16-volt max transformer input

Compatibility

Designed as a remote indoor transformer for SEAGULL LIGHTING LED address wall light systems requiring a 16-volt, 10 VA power source. The input data notes compatibility with address lights that accept a 16-volt max transformer connection via terminal block.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements for low-voltage lighting circuits. Disconnect and lock out power at the circuit breaker before making any wiring connections. Mount the transformer in a dry, protected indoor location and run the low-voltage leads to the exterior address light fixture per the fixture manufacturer instructions. Do not install this unit in wet or damp locations.

Technical Specifications

• Output Voltage: 16 volts
• Power Rating: 10 VA
• Mount Type: Remote indoor
• Connection Type: Terminal block

Standard Information

• Brand: SEAGULL LIGHTING
• Manufacturer Part Number: 9647
