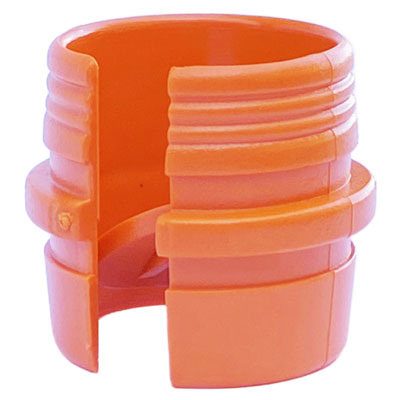

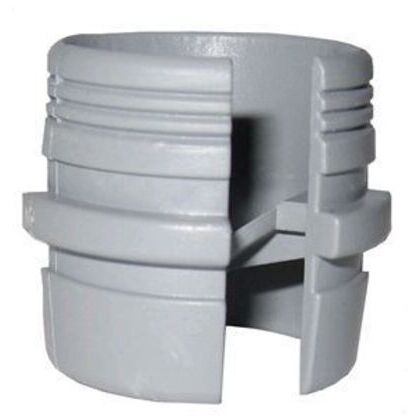

SEA RCR50 NM-B Connector 1/2 inches

Product Description

The SEA RCR50 is a 1/2 inches NM-B connector designed for use with 1/2 inches metal knockouts. This connector supports a total of eighteen configurations for single and double NM-B cables, including those with a ground wire. It features a retro fit design that allows installation from either outside or inside an enclosure, making it versatile for new installations or for replacement work.

• Installs in 1/2 inches metal knockouts
• Capacity: 18 total options for various NM-B cable configurations
• Retro fit design installs from outside or inside of enclosure

Product Highlights

This connector is suitable for various NM-B cable types with a simple installation process.

Product Information

Standard Information

• Type: Non-Metallic
• Material: Plastic

Technical Specifications

• Capacity: 18 total options for single cable: 14/2, 14/3, 12/2, 12/3, 10/2, 10/3, 8/2, and 6/2 NM-B with ground; double cable options: 14/2, 14/3, 12/2, 12/3, combinations of various wires
• Installs in: 1/2 inches metal knockouts
• Diameter: 1/2 inches
• Color: Orange
• Manufacturer: S.E.A.
• UPC: 689076499149
