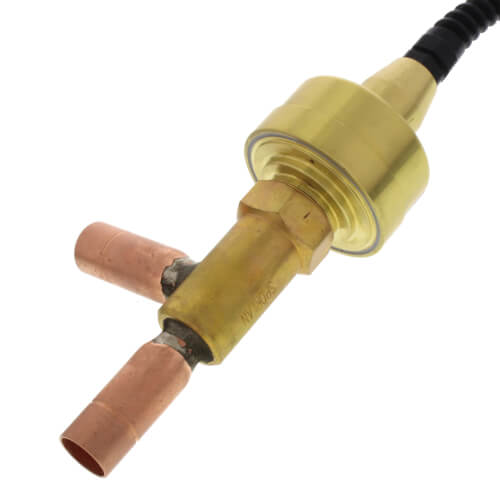

Sporlan 930004 SDR-3 5/8 inch ODF Angle Electronic Discharge Bypass Valve with 10 Ft. Cable

Product Description

The Sporlan 930004 SDR-3 Electronic Discharge Bypass Valve provides precise control over HVAC discharge applications. Engineered with a high-resolution stepper motor, this valve ensures superior functionality in regulating gas bypass to maintain consistent system pressures and temperatures.

• Features a five-eighths inch ODF connection for straightforward integration into existing systems.

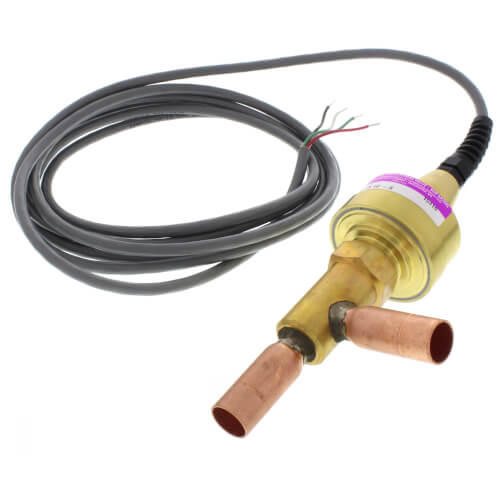

• Includes a ten-foot cable for extended reach and flexible installation.
• Constructed with corrosion-resistant materials to ensure durability and longevity in various environmental conditions.

Product Highlights

Offers direct temperature control and tight shutoff capabilities, enhancing system reliability. Compatible with CFC, HCFC, and HFC refrigerants, making it versatile for different HVAC setups. Low power consumption of only four watts promotes energy efficiency.

Product Information

Standard Information

• Motor Type: 2 Phase Permanent Magnet - 2 Coil Bipolar
• Minimum Ambient Temperature: -40 degrees Fahrenheit

Technical Specifications

• Resolution (Steps): 3193
• Configuration: Angle
• Capacity: Up to 40 tons R-410A
• Weight: 2.24 pounds
• Dimensions: Length 12.65 inches, Width 8.75 inches, Height 3.6 inches
