Sdc PTH-10QDPS 10-conductor Door Power Transfer Hinge

Product Description

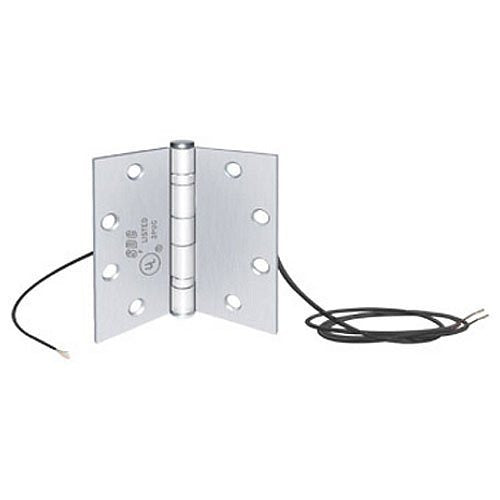

The SDC - SECURITY DOOR CONTROLS PTH-10QDPS is a 10-conductor power transfer hinge designed to carry low-voltage electrical signals and power through a door frame without exposed wiring. Measuring 4.5 x 4.5 inches, this hinge fits standard full-mortise hinge preps and integrates into access control, electrified hardware, and alarm loop systems. The 626 designation indicates a satin chrome finish, common in commercial door hardware. Installation is typically performed by a licensed low-voltage or access control technician as part of an electrified door hardware assembly.

This power transfer hinge is used in commercial and institutional door applications where continuous power or signal transfer is required between the door frame and the door leaf. Typical uses include powering electrified locksets, electric strikes, electromagnetic locks, or carrying alarm loop and access control wiring. It is suited for hollow metal doors and frames with standard 4.5 x 4.5 inch hinge cutouts.

Key Features

• 10-conductor design supports multiple low-voltage circuit runs through a single hinge
• 4.5 x 4.5 inch leaf size fits standard full-mortise commercial door hinge preps
• 626 satin chrome finish for corrosion resistance and professional appearance in commercial environments
• Eliminates exposed wiring at the door gap, reducing wear and liability on active door cycles
• Sold as a single unit for flexible installation quantities

Compatibility

Designed as an OEM-style replacement or new-installation power transfer hinge for commercial doors requiring a standard 4.5 x 4.5 inch full-mortise hinge footprint with low-voltage conductor pass-through capability.

Installation Notes

Installation should be performed by a qualified low-voltage or access control technician familiar with NFPA 70 (NEC) requirements for low-voltage wiring and electrified door hardware. Disconnect and de-energize all circuits before removing an existing hinge or routing conductors. Avoid sharp bends in the conductors during door swing adjustment to prevent wire fatigue over the door cycle life. Verify conductor terminations and insulation integrity after installation before restoring power to connected devices.
