Sdc PTH-10Q 10-conductor Hinge 4.5x4.5 Finish 626

Product Description

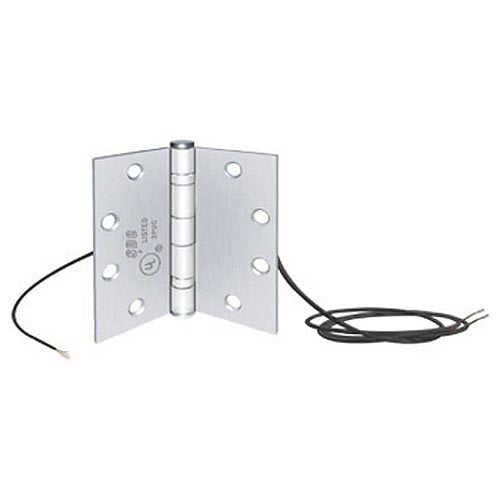

The SDC - SECURITY DOOR CONTROLS PTH-10Q is a 10-conductor concealed hinge designed to route low-voltage wiring through a door frame without exposed cables. It serves as both a functional door hinge and a wire passage, allowing signal or power conductors to travel from the frame to the door in a clean, protected path. Finished in satin chrome (626), the PTH-10Q measures 4.5 x 4.5 inches and is suited for commercial access control and security door installations. Licensed security and door hardware technicians are the typical installers for this component.

This hinge is used in commercial and institutional door applications where access control wiring, electric lock power, request-to-exit devices, or door position switches require a concealed conductor path. It is installed on doors where surface-mounted cable management is not acceptable or where code or specification requires a clean finish. The 4.5 x 4.5 inch leaf size fits standard commercial door preparations. The 626 finish coordinates with satin chrome hardware commonly specified on aluminum and hollow metal door frames.

Key Features

• 10 conductors routed internally through the hinge knuckle for clean low-voltage wire management
• 4.5 x 4.5 inch leaf size fits standard commercial door preparations
• Satin chrome 626 finish for compatibility with commercial hardware specifications
• Eliminates exposed surface wiring between door frame and door leaf
• Sold as a single unit (each)

Compatibility

Designed as an OEM-style concealed conductor hinge for commercial doors requiring low-voltage wiring passage, including access control and electric lock applications.

Installation Notes

Installation should be performed by a qualified door hardware technician or licensed security systems installer. Disconnect all power to any electric lock or access control device before routing conductors through the hinge. Follow ANSI and door hardware industry standards for hinge placement and fastener requirements. Verify conductor gauge and count are compatible with the connected access control equipment before completing the installation.
