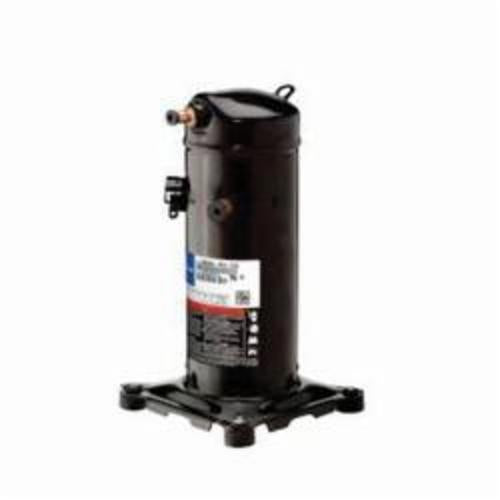

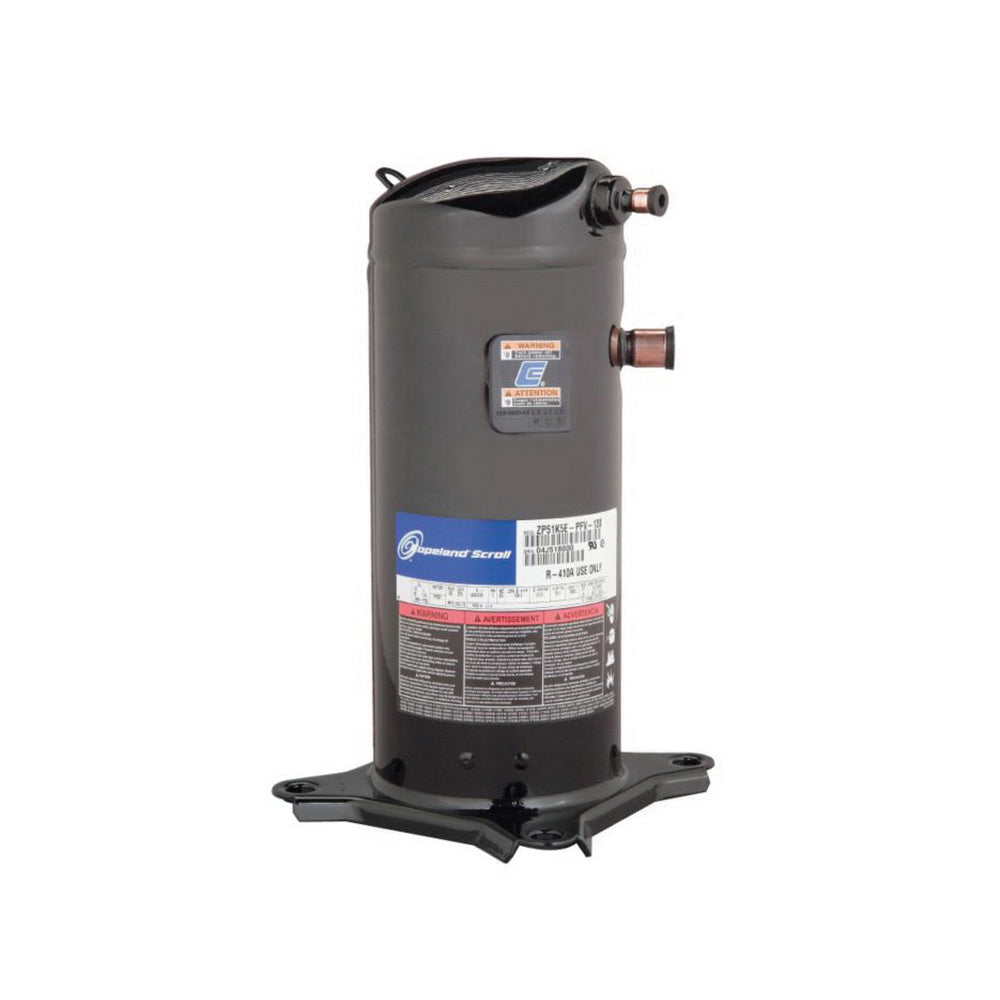

Copeland ZR94KCE-TF5-950 Three Phase Scroll Compressor 94000 BTU/hr Nominal R-22/R-407C/R-134a

Product Description

The Copeland ZR94KCE-TF5-950 is a three-phase scroll compressor with a nominal cooling capacity of 94,000 BTU/hr, suitable for use with R-22, R-407C, or R-134a refrigerants. This unit operates within a voltage range of 200 to 230 VAC and has an amperage draw of 32.1 A. Its compact dimensions of 10.38 inches in length, 11.23 inches in width, and 18.75 inches in height facilitate easy installation in various HVAC systems.

• Designed for commercial air conditioning applications.
• Equipped with POE compressor oil for optimal lubrication.
• Features a suction line size of 1-1/8 inches and a discharge line size of 7/8 inches.

Product Highlights

This scroll compressor offers enhanced reliability and efficiency through its innovative design, making it ideal for air conditioning systems.

Product Information

Standard Information

• Brand: Copeland
• Part Number: ZR94KCE-TF5-950

Technical Specifications

• Cooling Capacity: 94000 BTU/hr
• Voltage Rating: 200 to 230 VAC
• Amperage Rating: 32.1 A
• Type: Three Phase
• Compressor Oil: POE
• Suction Line Size: 1-1/8 inches
• Discharge Line Size: 7/8 inches
• Dimensions: 10.38 inches L x 11.23 inches W x 18.75 inches H
