Copeland ZR19M3E-TWD-961 Compressor 460v 222000 BTU R407C

Product Description

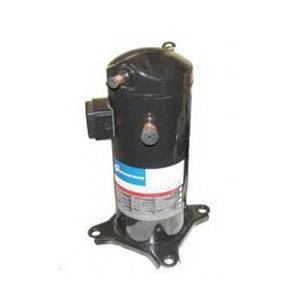

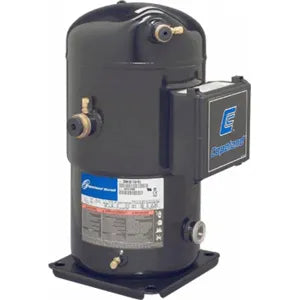

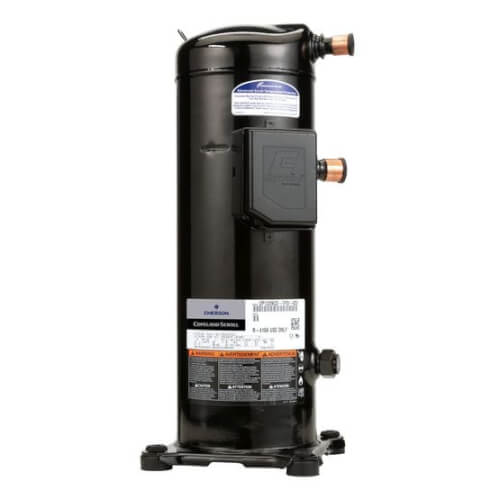

The Copeland ZR19M3E-TWD-961 is a powerful scroll compressor designed for air conditioning applications. This compressor operates at a voltage of 460 volts, making it suitable for industrial and commercial applications. The ZR19M3E-TWD-961 provides a cooling capacity of up to 222,000 BTU, utilizing environmentally-friendly refrigerants R-134a and R-407C.

• High efficiency with 460 volts powered operation
• Delivers cooling capacity of 222,000 BTU
• Compatible with R-134a and R-407C refrigerants

Product Highlights

The ZR19M3E-TWD-961 is built for durability and performance in demanding environments. Its design allows for smooth operation and reduced noise levels, making it ideal for large facilities that require reliable cooling solutions.

Product Information

Standard Information

• Brand: Copeland
• MPN: ZR19M3E-TWD-961

Technical Specifications

• Cooling Capacity: 222,000 BTU
• Voltage: 460/3/60
• Weight: 236 lbs
• Mounting Dimensions: 8.65 inches x 8.65 inches
• Dimensions: Length - 12.63 inches, Width - 13.75 inches, Height - 23.3 inches
• Refrigerant: R-134a; R-22; R-407C
• Discharge Connection Size: 1.75 inches
• Suction Line Size: 2.25 inches
