Copeland ZP90KCE-TFD-950 Scroll Compressor 460v3ph 90500btu R410A

Product Description

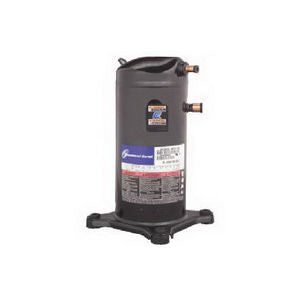

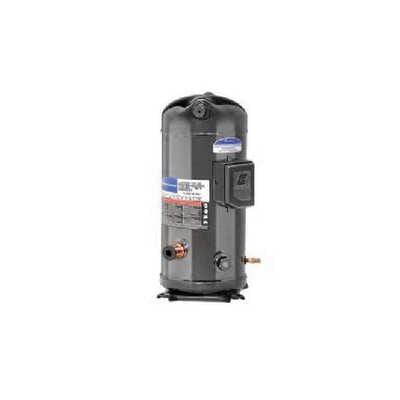

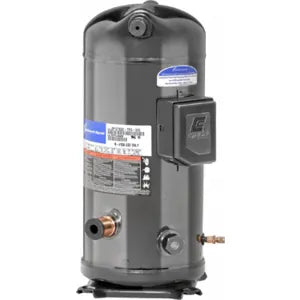

The Copeland ZP90KCE-TFD-950 is a scroll compressor designed for high-performance air conditioning and heat pump applications. Operating at 460 volts and 3-phase power, this unit delivers a cooling capacity of ninety thousand BTU per hour. It efficiently utilizes R-410A refrigerant, making it an environmentally friendly choice. The compressor's compact size allows for easier installation in various settings.

• Cooling capacity: 90,500 BTU
• Mounting dimensions: 7.50 inches x 7.50 inches
• Discharge line size: 7/8 inch; suction line size: 1-1/8 inch

Product Highlights

Ideal for both commercial and residential applications, this compressor is built for massive cooling needs.

Product Information

Standard Information

• Brand: Copeland
• MPN: ZP90KCE-TFD-950

Technical Specifications

• BTU Output: 90,500
• Voltage: 460VX3
• Weight: 127 lbs
• Refrigerant Type: R-410A
• Phase: Three
• Discharge Connection Size: 7/8 inch
• Suction Line Size: 1-1/8 inch
• Operating Temperature: Suitable for standard AC applications
