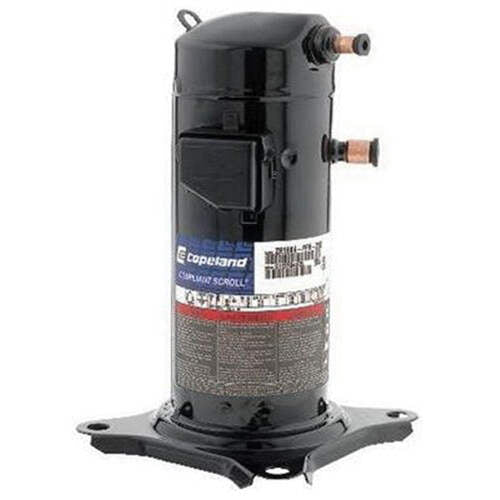

Copeland ZP90KCE-TF5-950 Scroll Compressor 208-230/3/60 111,000 BTUH R-410A

Product Description

The Copeland ZP90KCE-TF5-950 is a scroll compressor designed for commercial and industrial applications. This compressor is suitable for air conditioning and high-pressure applications, providing reliable cooling in demanding environments. The ZP90KCE-TF5-950 operates using R-410A refrigerant and has a cooling capacity of 111,000 BTU/hr. With its compact construction, this unit measures seven and one-half by seven and one-half inches in mounting dimensions, and it weighs one hundred twenty-seven pounds, making it suitable for various installations.

• Applications: A/C, H/P
• Temperature rating suitable for reliable operation
• Compatible with R-410A refrigerant for effective cooling

Product Highlights

This compressor is engineered for efficiency and durability, making it ideal for large-scale cooling requirements in both commercial and residential settings.

Product Information

Standard Information

• Brand: Copeland
• Model Number: ZP90KCE-TF5-950

Technical Specifications

• BTU Output: 111,000
• Refrigerant Type: R-410A
• Voltage Rating: 208-230/3/60
• Weight: 127 lbs
• Mounting Dimensions: 7.5 x 7.5 inches
• Suction Line Size: 1-1/8 inches
• Discharge Line Size: 7/8 inches
• Compressor Type: Scroll
• Phase: Three
