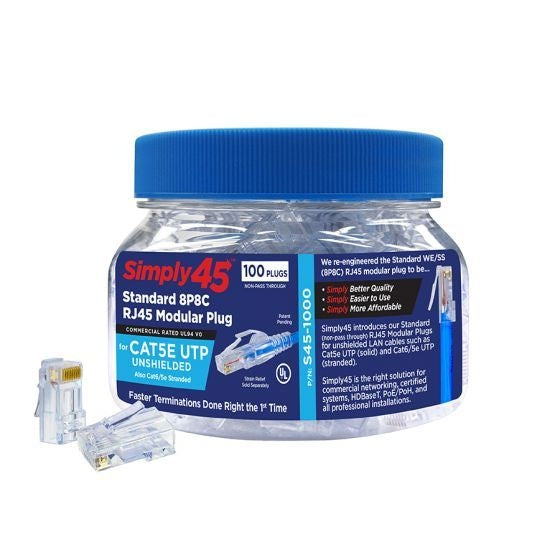

Scp Scp-1000 / S45-1000 Simply45 Unshielded Standard WE/SS (8P8C) RJ45 Modular Plugs

Product Description

The SCP SCP-1000 / S45-1000 are Simply45 Unshielded Standard WE/SS (8P8C) RJ45 Modular Plugs. These plugs are designed for 24AWG Cat5e UTP solid and 28-26 AWG Cat5e/6 UTP stranded wire conductors. They are UL94 V0 commercial rated and come in a jar of 100 pieces.

• Designed for 24AWG Cat5e UTP solid conductors.
• Compatible with 28-26 AWG Cat5e/6 UTP stranded conductors.
• UL94 V0 commercial rated.

Product Highlights

Unshielded RJ45 modular plugs suitable for various Cat5e and Cat6 UTP cable applications, featuring a commercial-grade fire safety rating.

Product Information

Standard Information

• Brand: SCP
• Manufacturer Part Number: SCP-1000 / S45-1000

Technical Specifications

• MPN: SCP-1000 / S45-1000
• Cable Type: Cat5e UTP
• Shielding: Unshielded
• Connector Type: RJ45
• Contact Type: 8P8C
• Wire Gauge: 24AWG (Solid), 28-26 AWG (Stranded)
• Conductor Diameter: 0.95-1.05mm (0.037-0.041")
• Maximum Cable OD: 6.4mm (0.252")
• Flammability Rating: UL94 V0
• Quantity: 100pcs/Jar
