Scp CAT5E-YL Cat5e 350 MHz 24AWG Solid BC 4PR 1000FT/305M Box

Product Description

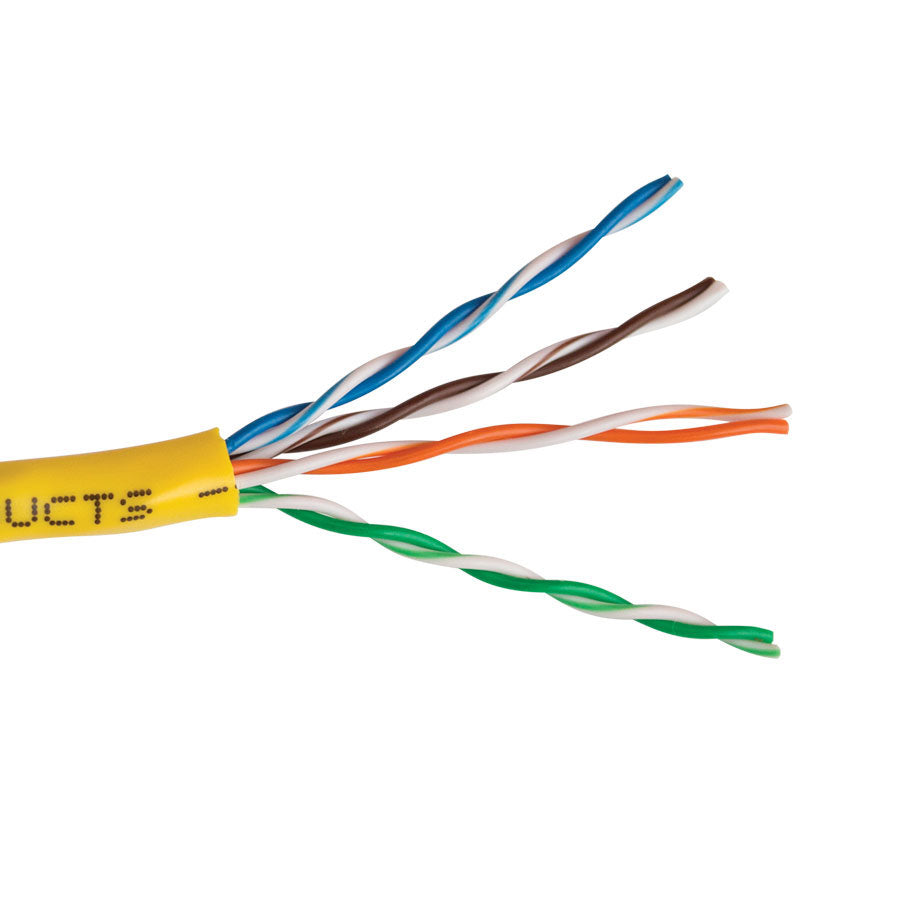

The SCP CAT5E-YL is a Category 5e (Cat5e) UTP (unshielded twisted pair) cable manufactured and tested to meet ANSI/TIA 568.2-D Category 5e and ISO/IEC 11801 Class D standards. This cable features 4 balanced twisted pairs on 24 AWG insulated solid bare copper conductors. Constructed with a round and flexible PVC jacket for easy pulling and stripping. Packaged in a tangle-free pull box.

• Category 5e (Cat5e) UTP (unshielded twisted pair)
• Meets ANSI/TIA 568.2-D Category 5e and ISO/IEC 11801 Class D standards

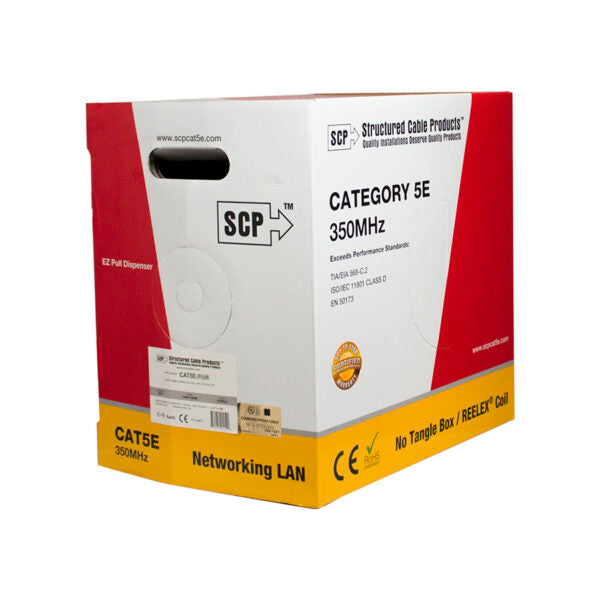

• Packaged in a tangle-free pull box

Product Highlights

Category 5e UTP cable with 4 balanced twisted pairs, 24 AWG conductors, and a flexible PVC jacket for easy installation.

Product Information

Standard Information

• Brand: SCP
• Manufacturer Part Number: CAT5E-YL

Technical Specifications

• Construction: Unshielded
• Length: 1000ft
• Category: CAT5E - Class D
• Conductor Material: Solid Bare Copper
• Conductor Size: 24AWG X 4P
• Conductor Construction: 1/0.48+/-0.004mm
• Insulation Material: HDPE
• Insulation Min. Thickness: 0.175mm
• Insulation AVG. Thickness: 0.18mm
• Insulation Diameter: 0.85+/-0.01mm
• Insulation Colors: Blue- White/Blue Orange-White/Orange Green-White/Green Brown-White/Brown
• Jacket Material: PVC
• Jacket Min. Thickness: 0.54mm
• Jacket AVG. Thickness: 0.60mm
• Jacket Diameter: 5.00+/-0.10mm
• Rip Cord: Nylon
• Jacket Color: Per request
• Bend Radius: Min 20D/105mm
• Operating Temperature Range: - 20?C + 75?C
• Conductor Resistance: Max 93.8 ohm/km at 20?C
• Dielectric Strength: Min AC1.5KV
• Unaged Tensile Strength (Insulation): 12.3Mpa
• Unaged Elongation (Insulation): 150%
• Aged Tensile Strength (Insulation): 9.8Mpa(100?C 168h)
• Aged Elongation (Insulation): 100%(100?C 168h)
• Unaged Tensile Strength (Jacket): 13.8Mpa
• Unaged Elongation (Jacket): 100%
• Aged Tensile Strength (Jacket): 11.7Mpa(100?C 168h)
• Aged Elongation (Jacket): 50%(100?C 168h)
• Rated Voltage: Max 300Volts
• DC Resistance Unbalance: Max 5%
• Pair-to-Ground Capacitance Unbalance: Max 3300pF/km
• Characteristic Impedance: 100+/-15OHM
• Nominal Velocity of Propagation(%): 67~69
• Propagation Delay: Max 536ns/100m
• Delay Skew: Max 45ns/100m
• MHz: 350 MHz
• AWG: 24 AWG Solid BC
• Pair: 4-Pair UTP
• Jacket: PVC Jacket
• UL: UL CMR
• Box: 1000' HD Box
