Scp CAT5E-WT Cat5e 350 MHz Cable 1000ft/305m Box

Product Description

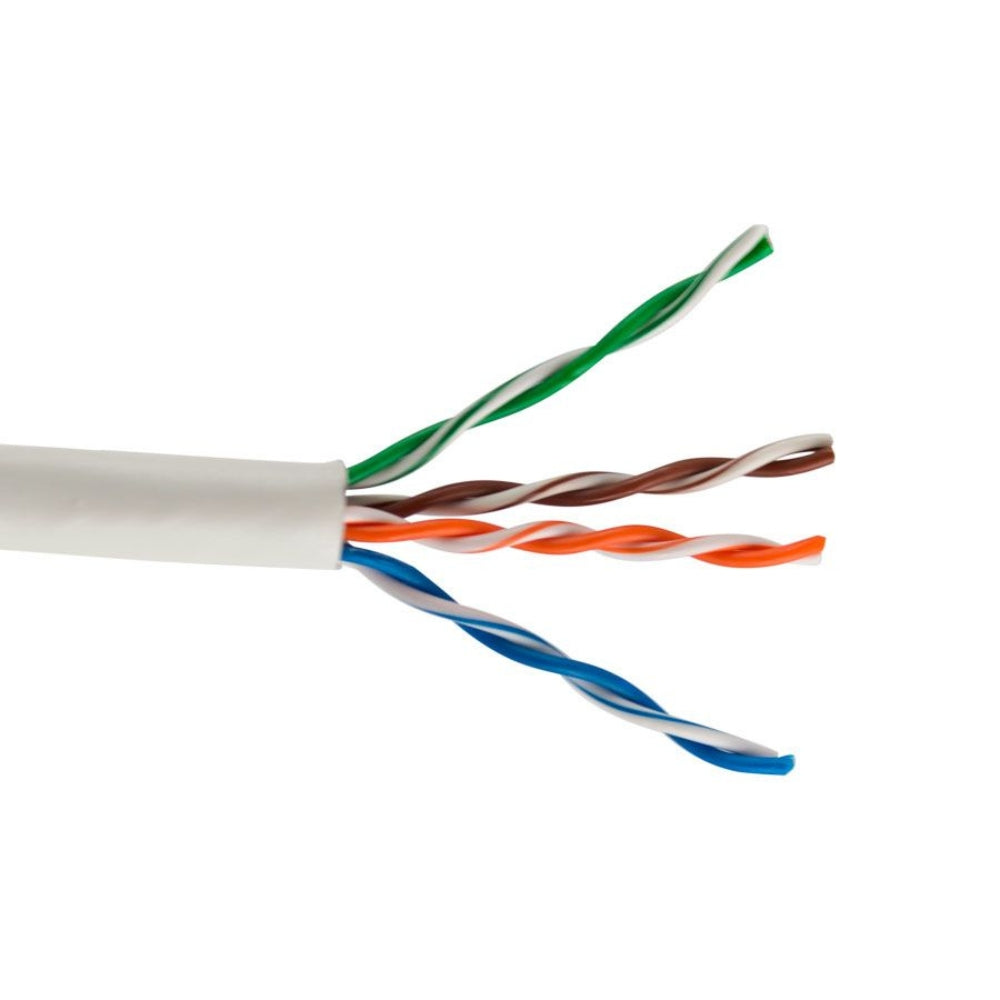

The SCP CAT5E-WT is a Category 5e (Cat5e) UTP cable manufactured and tested to meet ANSI/TIA 568.2-D Category 5e and ISO/IEC 11801 Class D standards. Each Cat5e UTP cable is performance optimized with 4 balanced twisted pairs on 24 AWG insulated solid bare copper conductors. It is constructed to create a round and flexible cable for easy pulling and stripping of the PVC jacket.

• Category 5e (Cat5e) UTP (unshielded twisted pair)
• Manufactured and tested to meet ANSI/TIA 568.2-D Category 5e and ISO/IEC 11801 Class D standards
• Performance optimized with 4 balanced twisted pairs on 24 AWG insulated solid bare copper conductors

Product Highlights

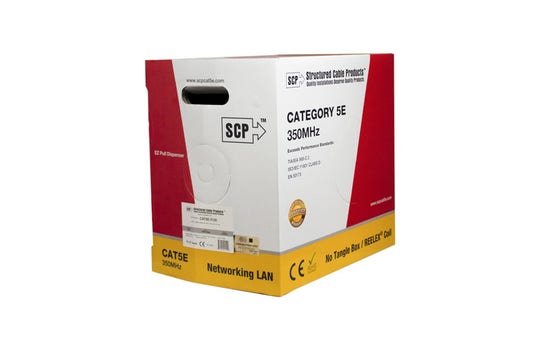

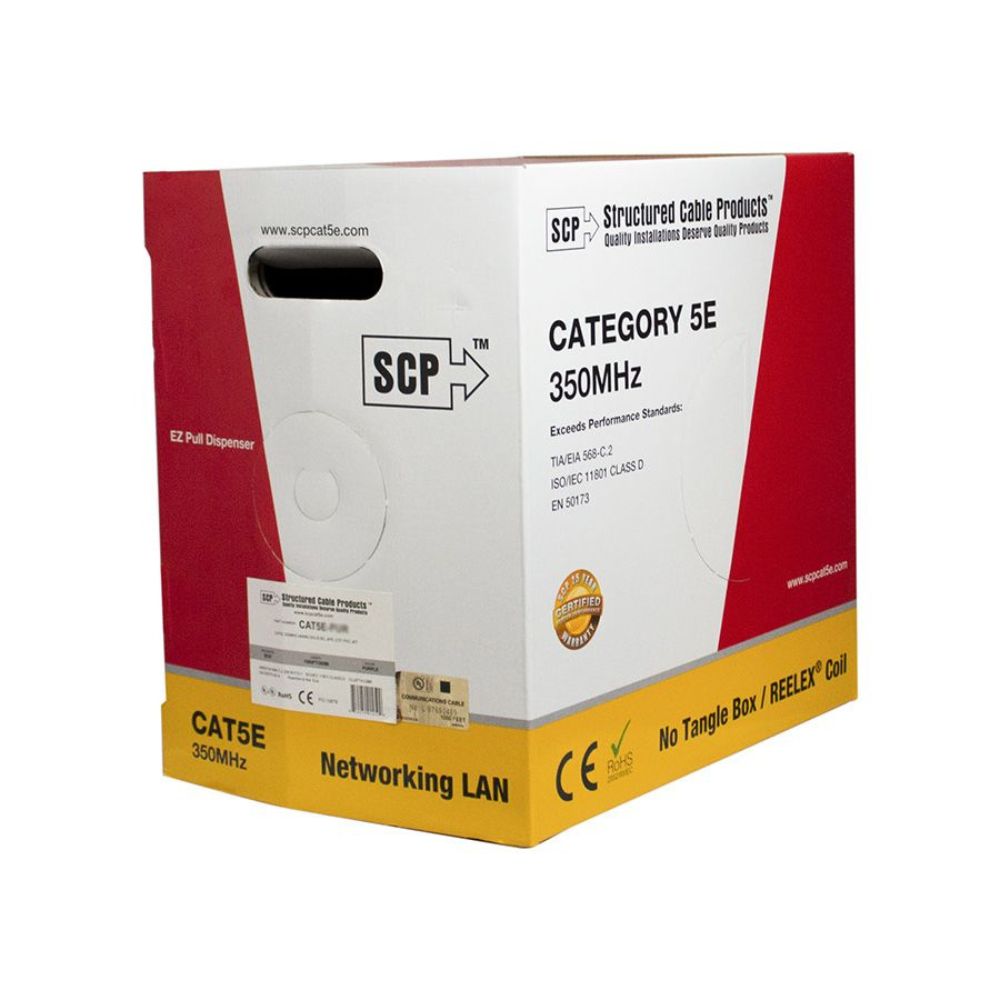

This SCP Cat5e UTP cable comes packaged in a pull box for tangle-free pulling and is UL and CMR rated. Suitable for high-performance IT, LAN & Ethernet installations and all Class D structured wiring systems. PoE/PoH Compliant.

Product Information

Standard Information

• Brand: SCP
• Manufacturer Part Number: CAT5E-WT

Technical Specifications

• Construction: Unshielded
• Length: 1000ft
• Conductor Material: Solid Bare Copper
• Size: 24AWG X 4P
• Insulation Material: HDPE
• Min. Thickness: 0.54mm
• AVG. Thickness: 0.60mm
• Diameter: 5.00±0.10mm
• Colors: Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown
• Jacket Material: PVC
• Rip Cord: Nylon
• Rating: CMR ETL
• Conductor Resistance: Max 105ohm/km at 20?C
• Dielectric Strength: Min AC1.5KV
• Spark Test: 5.0KV
• AC Leakage Current Through overall Jacket: AC 1500V≦10mA
• Insulation PVC Unaged Tensile Strength: 16.5 Mpa
• Insulation PVC Unaged Elongation: 500%
• Insulation PVC Aged Tensile Strength: 14.2 Mpa(1 00ºC 168h)
• Insulation PVC Aged Elongation: 250%(100ºC 168h)
• Jacket Unaged Tensile Strength: 13.8 Mpa
• Jacket Unaged Elongation: 150%
• Jacket Aged Tensile Strength: 11.7 Mpa(100ºC 168h)
• Jacket Aged Elongation: 80%(100ºC 168h)
• Cold Bend Test: -20ºC 4hours No Cracking
• DC Resistance Unbalance: Max 5%
• Pair-to-Ground Capacitance Unbalance: Max 3300pF/km
• Characteristic Impedance: 1~350MHz 100± 15OHM
• Nominal Velocity of Propagation (%): 67~69
• Propagation Delay: 350MHz Max 536ns/100m
• Delay Skew: 1~350MHz Max 45ns/100m
• Frequency: 350 MHz
• Conductor Gauge: 24 AWG
• Pairs: 4PR (4 pairs)
• Standard Compliance: ANSI/TIA 568.2-D Category 5e and ISO/IEC 11801 Class D
• Application: High-performance IT, LAN & Ethernet installations. Suitable for use in all Class D structured wiring systems. PoE/PoH Compliant.
• Cable Type: CAT5E UTP (unshielded twisted pair)
