Scp CAT5E-BLUE-ETL Cat5e 350 MHz 24 AWG Solid BC 4PR UTP (1000 FT Box)

Product Description

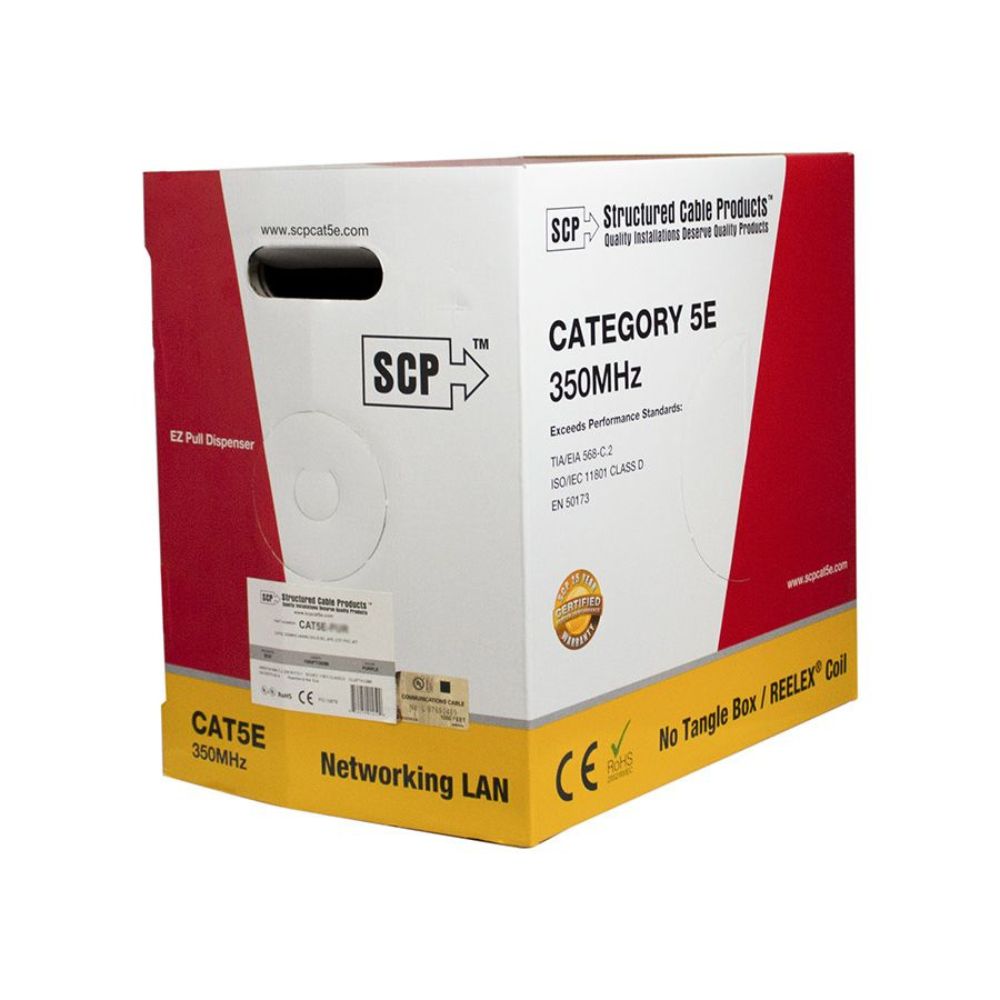

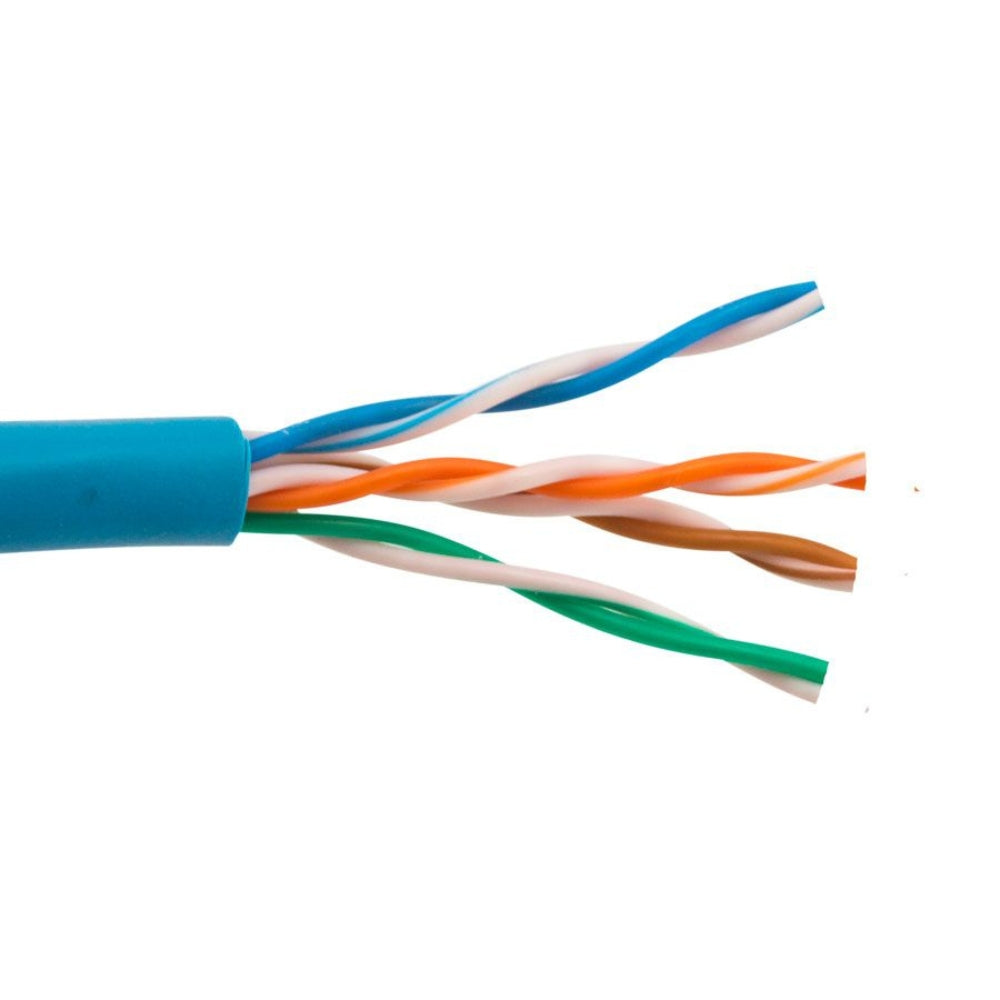

The SCP CAT5E-BLUE-ETL is a Category 5e unshielded twisted pair cable, manufactured and tested to meet TIA/EIA 568-C.2 Category 5e and ISO/IEC 11801 Ed2 Class D standards. This 24 AWG solid bare copper conductor cable features 4 balanced twisted pairs and is packaged in a pull box for tangle-free pulling. It supports high-performance IT, LAN, and Ethernet installations and is PoE/PoH compliant.

• Category 5E Cable
• 4 Pair UTP
• 24 AWG Solid BC

Product Highlights

350 MHz Cat5e cable with solid bare copper conductors, ideal for high-performance network installations.

Product Information

Standard Information

• Brand: SCP
• Manufacturer Part Number: CAT5E-BLUE-ETL

Technical Specifications

• Part Number: CAT5E-BLUE-ETL
• Category: CAT5E - Class D
• UPC/EAN: 817777012422
• Length: 1000ft
• Conductor Material: Solid Bare Copper
• Conductor Size: 24AWG X 4P
• Conductor Construction: 1/0.48+/-0.004mm
• Insulation Material: HDPE
• Minimum Insulation Thickness: 0.175mm
• Average Insulation Thickness: 0.18mm
• Insulation Diameter: 0.85+/-0.01mm
• Insulation Colors: Blue- White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown
• Jacket Material: PVC
• Minimum Jacket Thickness: 0.54mm
• Average Jacket Thickness: 0.60mm
• Jacket Diameter: 5.00+/-0.10mm
• Rip Cord: Nylon
• Bend Radius: Min 20D/105mm
• Operating Temperature Range: - 20?C + 75?C
• Conductor Resistance: Max 93.8 ohm/km at 20?C
• Dielectric Strength: Min AC1.5KV
• Unaged Tensile Strength (Insulation): 12.3Mpa
• Unaged Elongation (Insulation): 150%
• Aged Tensile Strength (Insulation): 9.8Mpa(100?C 168h)
• Aged Elongation (Insulation): 100%(100?C 168h)
• Unaged Tensile Strength (Jacket): 13.8Mpa
• Unaged Elongation (Jacket): 100%
• Aged Tensile Strength (Jacket): 11.7Mpa(100?C 168h)
• Aged Elongation (Jacket): 50%(100?C 168h)
• Rated Voltage: Max 300Volts
• DC Resistance Unbalance: Max 5%
• Pair-to-Ground Capacitance Unbalance: Max 3300pF/km
• Characteristic Impedance: 100+/-15OHM
• Nominal Velocity of Propagation(%): 67~69
• Propagation Delay: Max 536ns/100m
• Delay Skew: Max 45ns/100m
• Applications: High-performance IT, LAN & Ethernet installations. Suitable for use in all Class D structured wiring systems. PoE/PoH Compliant.
