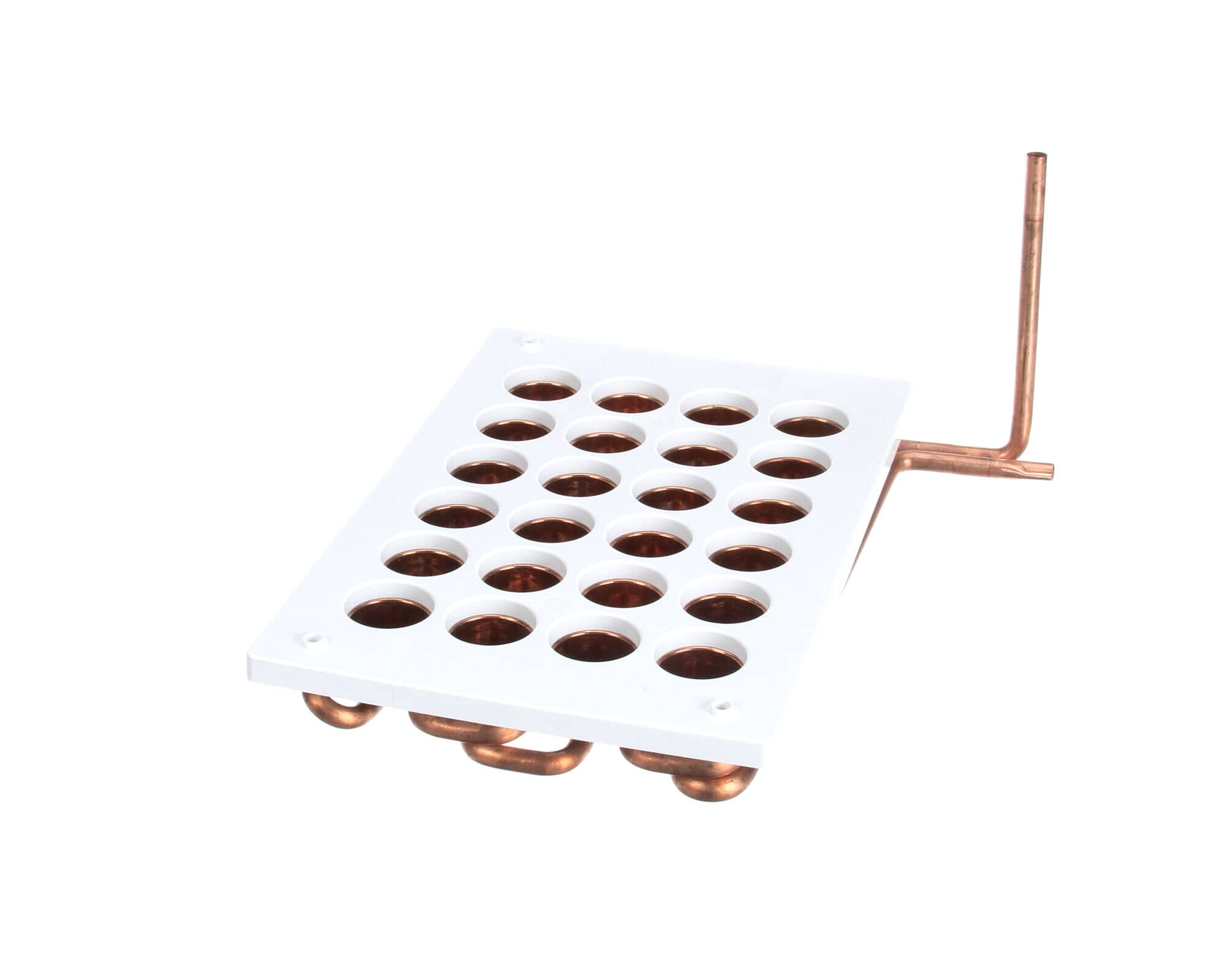

Scotsman 02-4376-01 Evaporator Assembly 24 Cube

Product Description

The SCOTSMAN 02-4376-01 is an evaporator assembly designed for commercial ice machines that produce 24-cube ice formations. The evaporator assembly is the core refrigeration component where water freezes into ice cubes. It interfaces with the refrigerant circuit and water distribution system, functioning as the heat-exchange surface that drives cube production. This part is a direct-replacement component installed by commercial refrigeration technicians during scheduled maintenance or after evaporator failure. It is designed to restore original ice production capacity and cube geometry to the affected unit.

This evaporator assembly is intended for use in Scotsman commercial cuber units, specifically models in the CU50, SCCG50, and SCCP50 series. These are compact commercial ice machines commonly found in foodservice, hospitality, and light commercial applications. The 24-cube configuration refers to the evaporator grid layout that determines cube count per harvest cycle. This part is appropriate for technicians servicing existing installations where the evaporator has experienced scale buildup damage, refrigerant-side corrosion, or physical failure that prevents proper ice formation.

Key Features

• 24-cube evaporator grid configuration matching original harvest count per cycle
• Direct OEM replacement for Scotsman CU50, SCCG50, and SCCP50 series ice machines
• Designed as a core refrigeration component for restoring standard cube production
• Compatible with existing refrigerant circuit and water distribution system interfaces in supported models

Compatibility

Compatible with Scotsman commercial ice machine models CU50, SCCG50, and SCCP50 as stated in manufacturer parts documentation.

Installation Notes

Evaporator assembly replacement on commercial ice machines must be performed by a certified commercial refrigeration technician, as the work involves opening a sealed refrigerant circuit and requires EPA Section 608 certification. Power down the unit and allow the refrigerant system to be properly recovered before beginning disassembly. Flush and sanitize the water circuit after installation per the manufacturer service procedure. Leak-test all refrigerant connections before recharging the system and returning the unit to service.

Technical Specifications

• Cube Count: 24 cubes per harvest cycle
• Component Type: Evaporator Assembly

Standard Information

• Brand: SCOTSMAN
• Manufacturer Part Number: 02-4376-01
