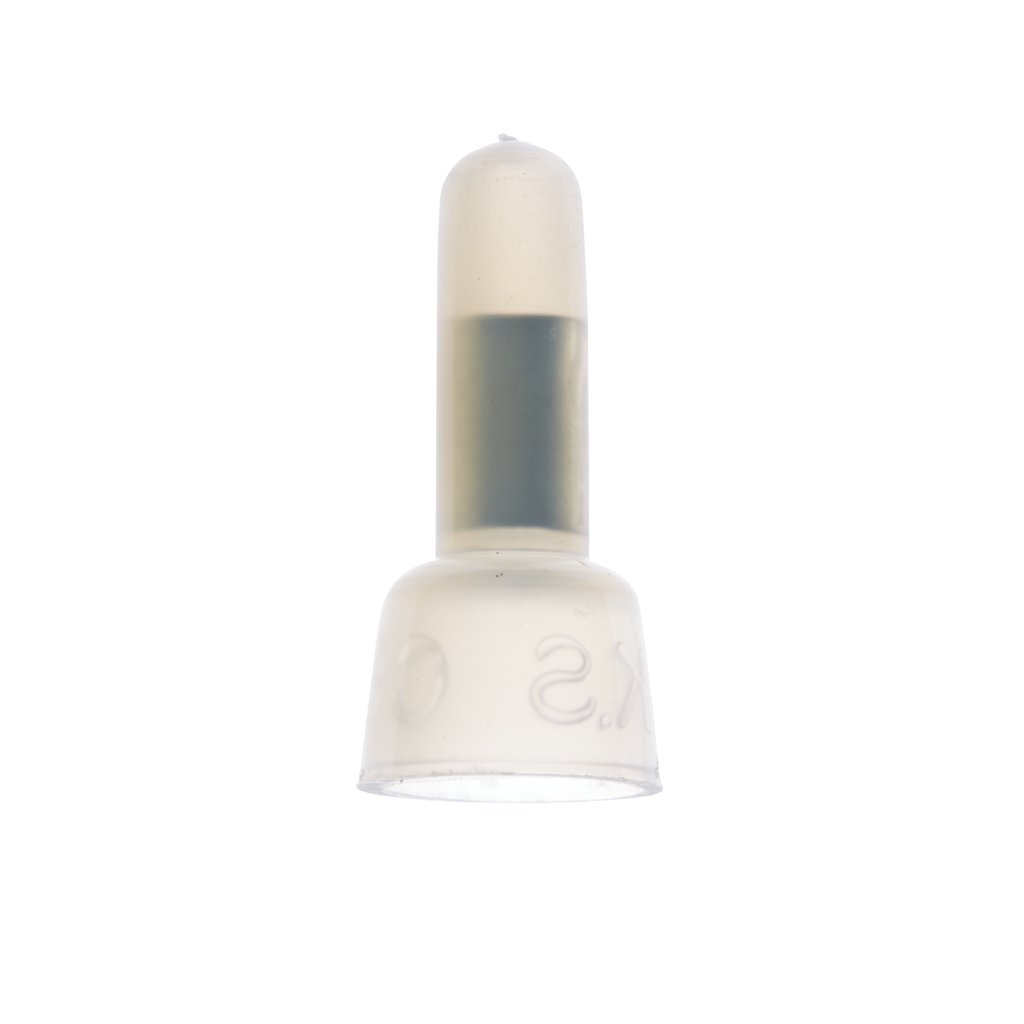

Scotchlok S-11-A Closed End Connector 600V 22 to 16 AWG

Product Description

Scotchlok S-11-A is a color-coded closed-end connector manufactured by 3M. This electrical crimp connector is designed to accommodate wire sizes between twenty-two and sixteen AWG. With its copper insert, it ensures efficient conductivity and reliability for various electrical applications.

• Rated for six hundred volts for building wires and up to one thousand volts for signs and fixtures.
• Construction withstands temperatures ranging from negative forty to two hundred twenty-one degrees Fahrenheit.
• Meets UL and CSA certifications, ensuring compliance with safety standards.

Product Highlights

The Scotchlok S-11-A is ideal for quick wire installations, providing a secure fit through its vinyl insulation and a flared end for easy wire insertion.

Product Information

Standard Information

• Catalog Number: S-11-A
• Manufacturer: 3M Electrical Products

Technical Specifications

• Material: Nylon
• Voltage Rating: 600 Volt
• Conductor Size: 22 to 16 AWG
• Overall Length: 0.83 inches
• Diameter: 0.145 inches
• GTIN: 00051128589977
• Standard & Approvals: UL Listed, CSA Certified, RoHS Compliant
• Country of Origin: Taiwan, Province of China
