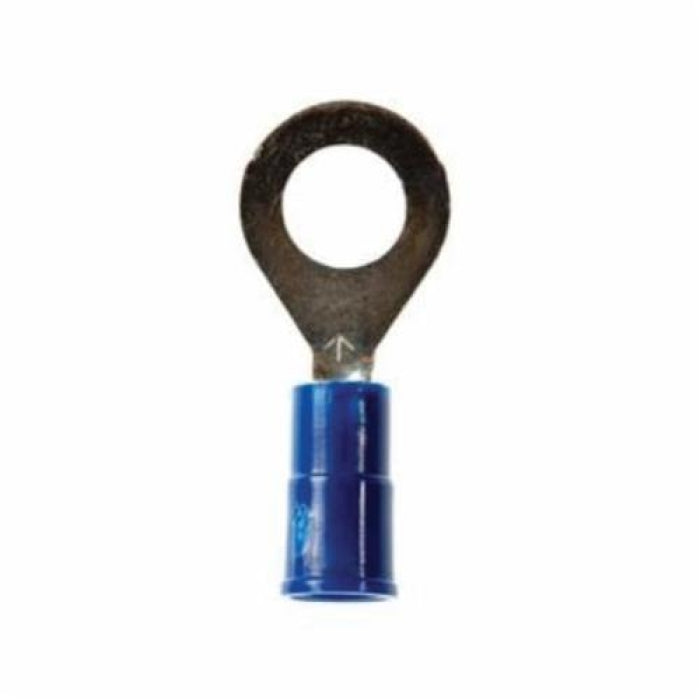

Scotchlok MVU14-10RX Insulated Standard Ring Terminal 16 to 14 AWG Conductor 0.9 in Length

Product Description

The Scotchlok MVU14-10RX is a reliable insulated ring terminal made by 3M. This terminal is designed for use with conductors ranging from sixteen to fourteen AWG. Its butted seam barrel features a funnel design for easy wire insertion, while the robust polyvinyl chloride sleeve provides mechanical stress relief. The terminal is constructed from electrolytic copper and coated with tin for added corrosion resistance. It withstands temperatures from negative forty to two hundred twenty-one degrees Fahrenheit, making it suitable for challenging environments.

• Compatible with 16 to 14 AWG conductors
• Rated for 600/1000 VAC
• Durable vinyl insulation and a tin-plated finish

Product Highlights

This terminal offers dependable connectivity and fits around a #10 stud. The blue vinyl insulation ensures visibility and helps prevent accidental contact.

Product Information

Standard Information

• Brand: Scotchlok
• Manufacturer: 3M

Technical Specifications

• Conductor Size: 16 to 14 AWG
• Length: 0.9 inches
• Barrel Size: 0.07 inches ID x 0.25 inches L
• Tongue Size: 0.33 inches W x 0.03 inches THK
• Tongue Type: Ring
• Voltage Rating: 600/1000 VAC
• Temperature Rating: -40 to 221 degrees F
• Material: Vinyl, electrolytic copper
• Finish: Tin Plated
• Standards: UL E23438, CSA Certified
