Scotchlok MVU10-55PX-A Pin Vinyl Insulated (50/bottle)

Product Description

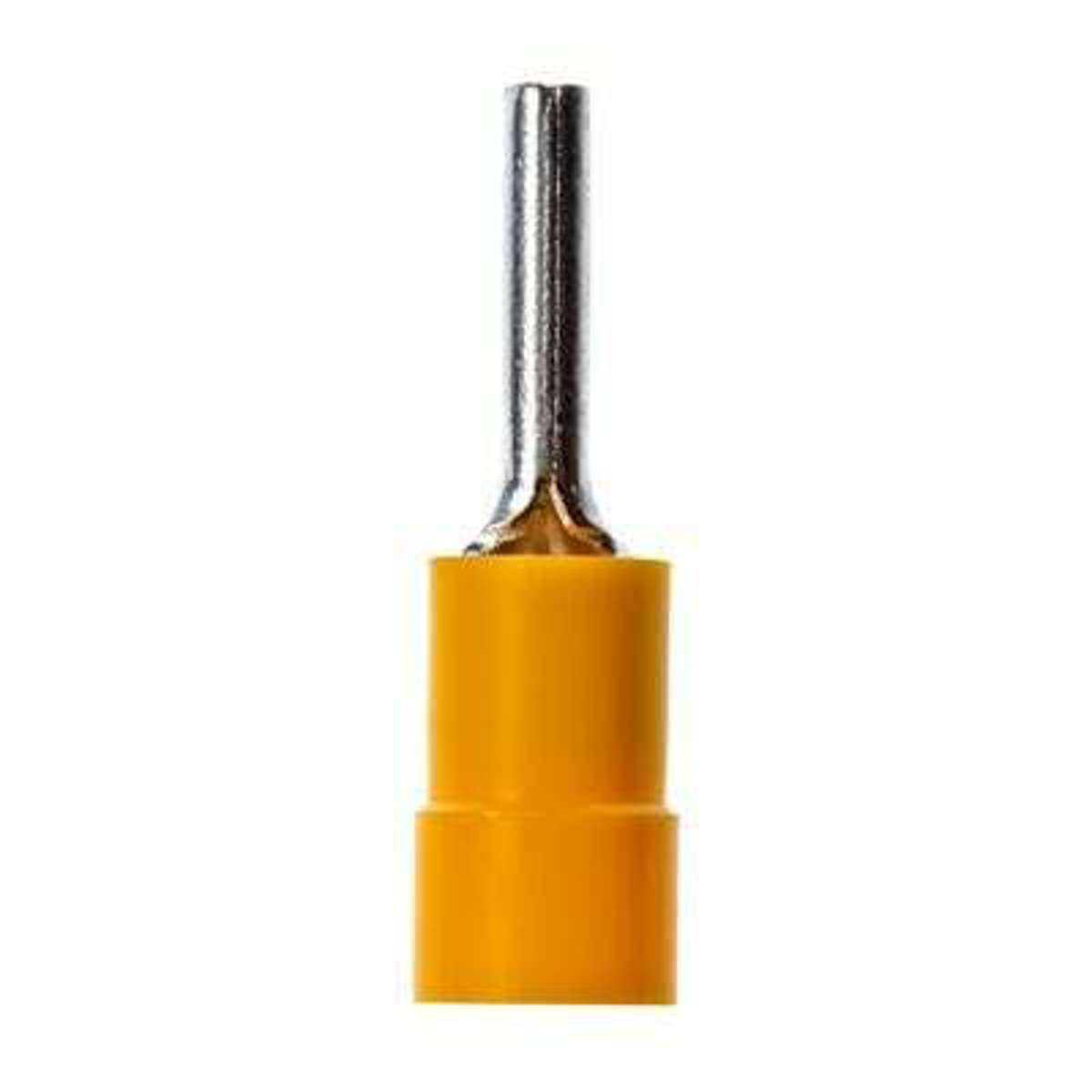

The SCOTCHLOK MVU10-55PX-A pin terminal is color-coded for easy wire size identification. It features a butted-seam barrel covered by a funnel-designed polyvinyl chloride sleeve, guiding the wire and providing electrical contact and stress relief. The abrasion-resistant vinyl insulation ensures easy crimping and withstands a maximum temperature of 167 degrees F. It is UL Listed, CSA Certified and RoHS compliant.

• Color-coded for quick wire size identification
• Vinyl-insulated, butted-seam barrel for secure fit
• Maximum conductor size of 10 AWG and minimum conductor size of 12 AWG

Product Highlights

The SCOTCHLOK MVU10-55PX-A pin terminal provides reliable and safe performance with easy wire insertion and corrosion resistance.

Product Information

Standard Information

• Brand: SCOTCHLOK
• Manufacturer Part Number: MVU10-55PX-A
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: MVU10-55PX-A
• Manufacturer: 3M Electrical Products
• Brand: Scotchlok
• Sub Brand: Scotchlok
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Material: Vinyl
• UPC: 051128588635
• GTIN: 00051128588635
• Item Type: Pin
• ECCN: EAR99
• UNSPSC: 39121432
• Insulation Material: Vinyl
• Type: Butted Seam
• Conductor Size: 12 to 10 AWG
• Temperature Rating: 167 Deg F
• Application: Pin Type Terminal Block
• Approval: UL
• Voltage Rating: 600 V (Building Wire), 1000 V (Signs, Fixtures)
• Terminal Material: Tin Plated ETP Copper
• Barrel Inside Diameter: 0.070 Inch, 0.090 Inch, 0.135 Inch
• Barrel Style: Butted
• Seam Type: Butted
• Maximum Wire Size: 10 AWG
• Minimum Wire Size: 12 AWG
• Pin Length: 0.55 in
• Pin Diameter: 0.11 in
• Overall Length: 1.06 in
• Package Quantity: 50 per bottle
• Maximum Cable Insulation Outer Diameter: 0.25 in
• Barrel Length Type: Butted
• Inside Diameter: 0.135 in
• Maximum Insulation Outside Diameter: 0.25 in
• Minimum Conductor Leg Diameter: 12 AWG
