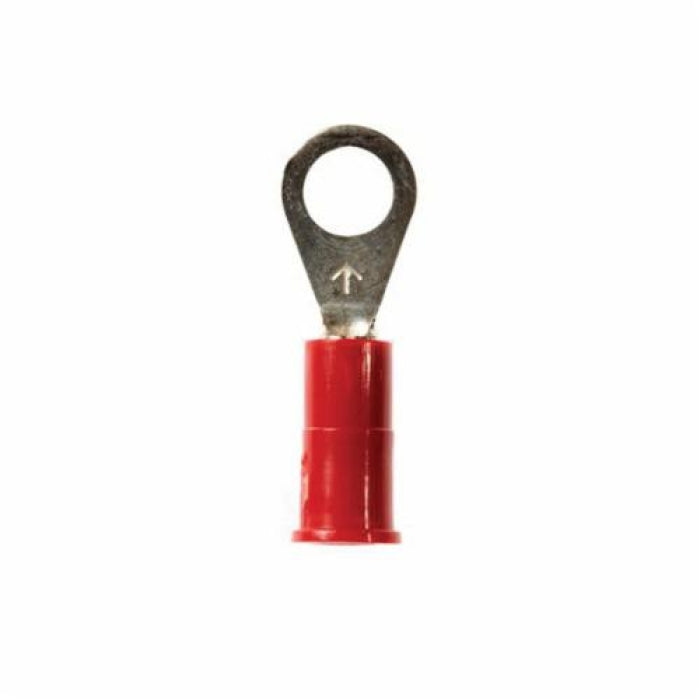

Scotchlok MV18-8R/LX Insulated Standard Ring Terminal 22 to 18 AWG Conductor

Product Description

The Scotchlok MV18-8R/LX from 3M is a reliable insulated standard ring terminal designed for use with 22 to 18 AWG conductors. This product features a unique flared vinyl sleeve that simplifies the crimping process and ensures a secure fit. The brazed seam barrel is engineered for durability, while a funnel-shaped polyvinyl chloride cover sleeve guides wires into position, providing both mechanical stress relief and reliable electrical contacts.

• Insulated for safety
• Compatible with #8 studs
• Temperature rated from -40 to 221 degrees Fahrenheit

Product Highlights

This ring terminal is specifically designed for easy integration into various applications, including building fixtures, luminaires, and signs.

Product Information

Standard Information

• Brand: 3M
• MPN: MV18-8R/LX

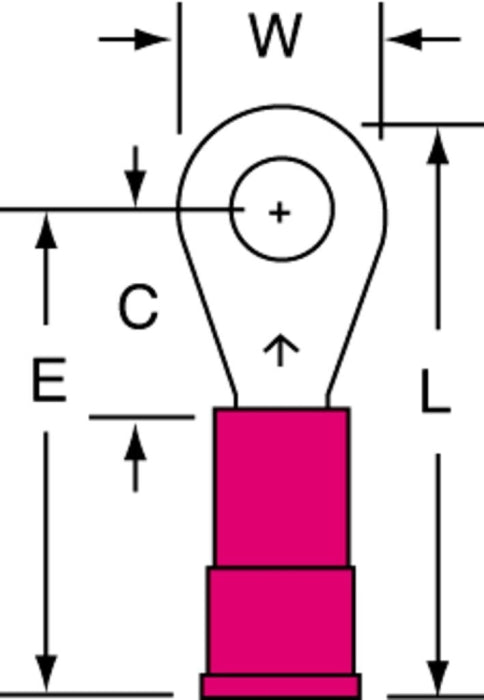

Technical Specifications

• Material: Copper
• Color: Red
• Voltage Rating: 600/1000 VAC
• Conductor Size: 22 to 18 AWG
• Length: 0.93 inches
• Tongue Size: 0.31 inches W x 0.03 inches T
• Barrel Size: 0.07 inches ID x 0.25 inches L
• Stud Size: #8
• Insulation Diameter: 0.145 inches Max
• Clearance: 0.33 inches
• Minimum Order Quantity: 1
• Standard & Approvals: UL and CSA Listed
