Product Description

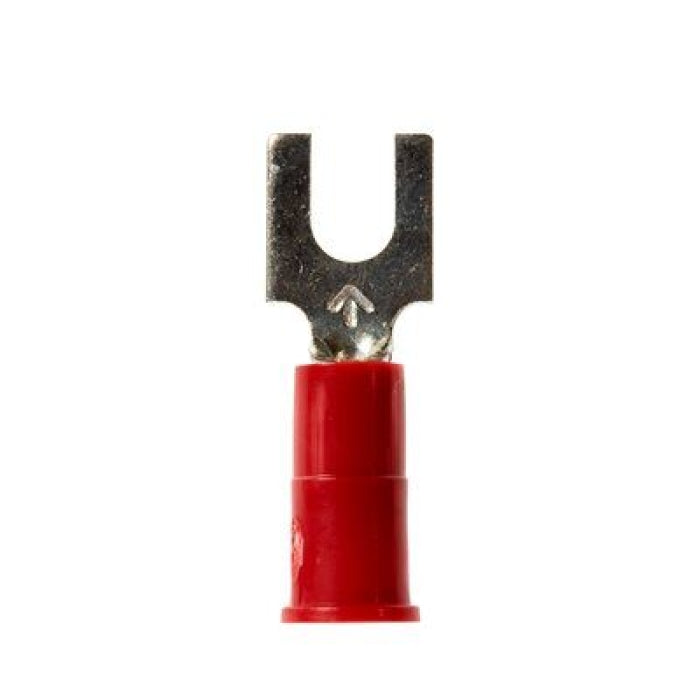

The Scotchlok MV18-6FBX is a fork terminal designed by 3M for efficient electrical connections. This terminal is suitable for conductors ranging from 22 to 18 AWG. It features a brazed seam barrel and is made from electrolytic copper with a vinyl insulation sleeve. The funnel-shaped design of the sleeve facilitates the proper positioning of wires. The insulation is both abrasion-resistant and flared to allow for easy crimping.
- Color-coded for easy identification of wire sizes
- Designed for conductors from 22 to 18 AWG
- Provides reliable electrical connections with excellent stress relief
Product Highlights
This terminal offers a reliable connection, thanks to its sturdy construction and ease of use.
Product Information
Standard Information
-
Manufacturer: 3M
-
Brand: Scotchlok
Technical Specifications
-
MPN: MV18-6FBX
-
Conductor Size: 22 to 18 AWG
-
Length: 0.85 inches
-
Barrel ID: 0.07 inches
-
Barrel Length: 0.25 inches
-
Stud Size: #6
-
Operating Voltage: 600 to 1000 VAC
-
Temperature Range: -40 to 221 degrees F
