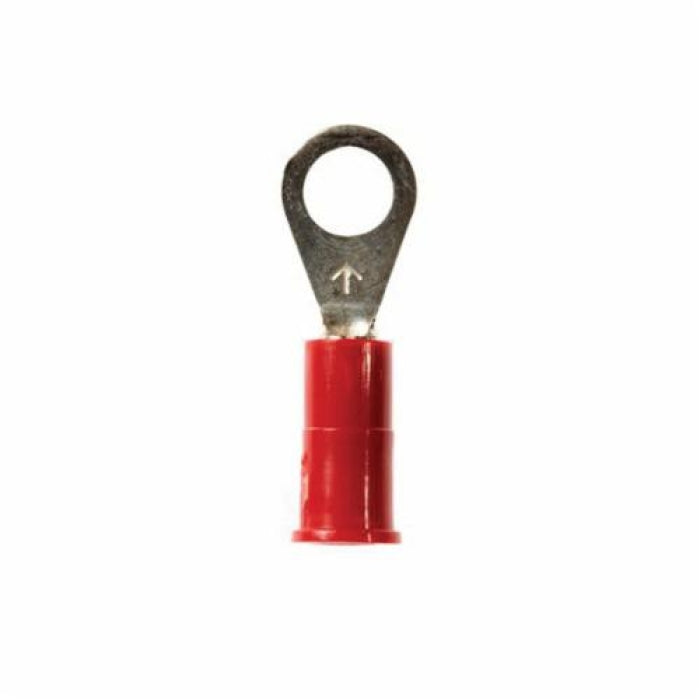

Scotchlok MV18-14R/SX Insulated Standard Ring Terminal 22 to 18 AWG 1.08 in Length

Product Description

3M Scotchlok MV18-14R/SX is an insulated standard ring terminal designed for reliable electrical connections. This terminal is suitable for use with conductors ranging from twenty-two to eighteen American wire gauge (AWG). It features a brazed seam barrel for enhanced durability and a red vinyl insulation that offers protection and secure connectivity.

• Compatible with conductors sized from 22 to 18 AWG.
• Temperature range capability from -40 to 221 degrees Fahrenheit.
• Constructed from electrolytic copper for effective conductivity.

Product Highlights

Utilize the Scotchlok MV18-14R/SX for standard applications where a secure wire connection is necessary. This ring terminal is ideal for various building fixtures, luminaires, and connecting wires.

Product Information

Standard Information

• Brand: Scotchlok
• Manufacturer: 3M
• Part Number: MV18-14R/SX

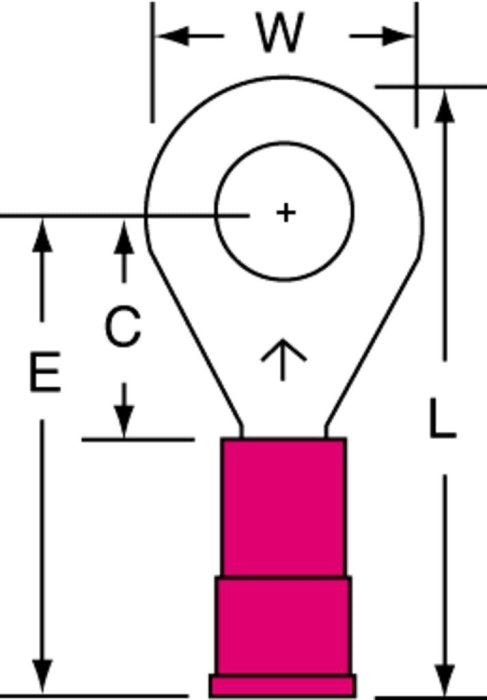

Technical Specifications

• Barrel Size: 0.07 in ID x 0.25 in L
• Length: 1.08 in
• Stud Size: 1/4 in
• Insulation Diameter: 0.145 in
• Clearance: 0.4 in
• Voltage Rating: 600/1000 VAC
• Material: Copper, Tin Plated
• Application: For Building Fixtures or Luminaires, Wires and Signs
