3M MV14-6R/SX TERMINALS

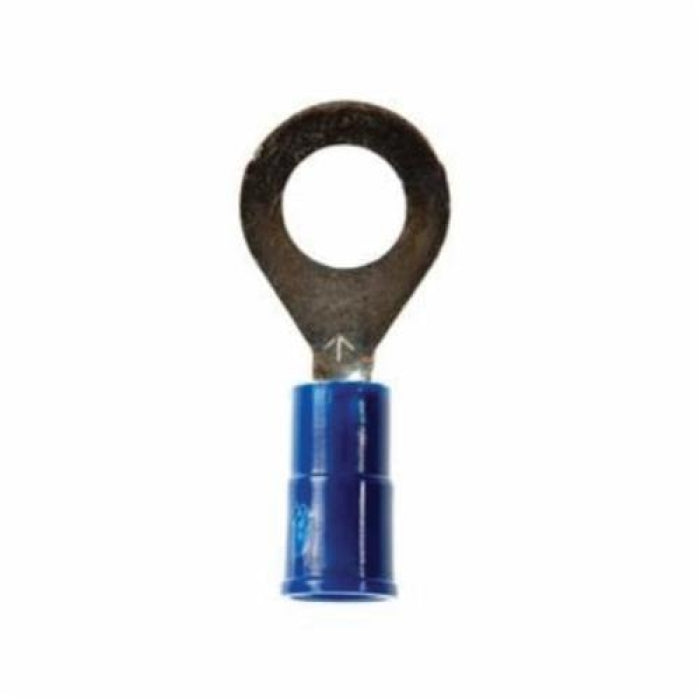

3M Scotchlok MV14-6R/SX Insulated Standard Ring Terminal 16 to 14 AWG
3M MV14-6R/SX TERMINALS
Scotchlok MV14-6R/SX Insulated Standard Ring Terminal 16 to 14 AWG

Scotchlok MV14-6R/SX Insulated Standard Ring Terminal 16 to 14 AWG

3M
Brand: 3M
SKU: MV14-6R/SX
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

3M Scotchlok MV14-6R/SX is an insulated standard ring terminal designed for use with 16 to 14 AWG conductors. Made from high-quality materials, it provides reliable electrical connections in a variety of applications.

  • Insulated design for enhanced safety
  • Compatible with conductors from 16 to 14 AWG
  • Features a brazed seam barrel for added strength

Product Highlights

This ring terminal is made with a blue vinyl insulation which protects against electrical shorts and enhances durability. The terminal is ideal for securing wires in automotive applications or in building fixtures where a secure connection is important.

Product Information

Standard Information

  • Brand: 3M
  • MPN: MV14-6R/SX

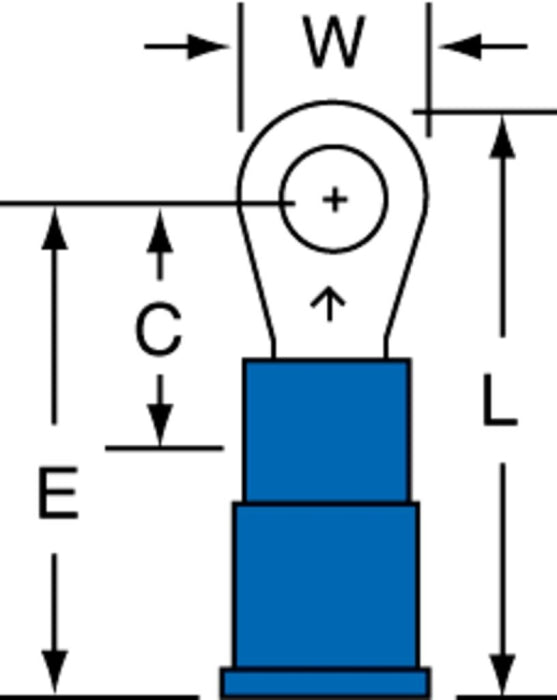

Technical Specifications
Conductor Size
16 to 14 AWG
Barrel Type
Brazed Seam
Voltage Rating
600/1000 VAC
Temperature Rating
-40 to 221 deg F
Length
0.8 inches
Ring Diameter
0.25 inches
Thickness
0.03 inches
Material
Copper, Tin Plated
Insulation Diameter
0.17 inches
Clearance
0.22 inches
