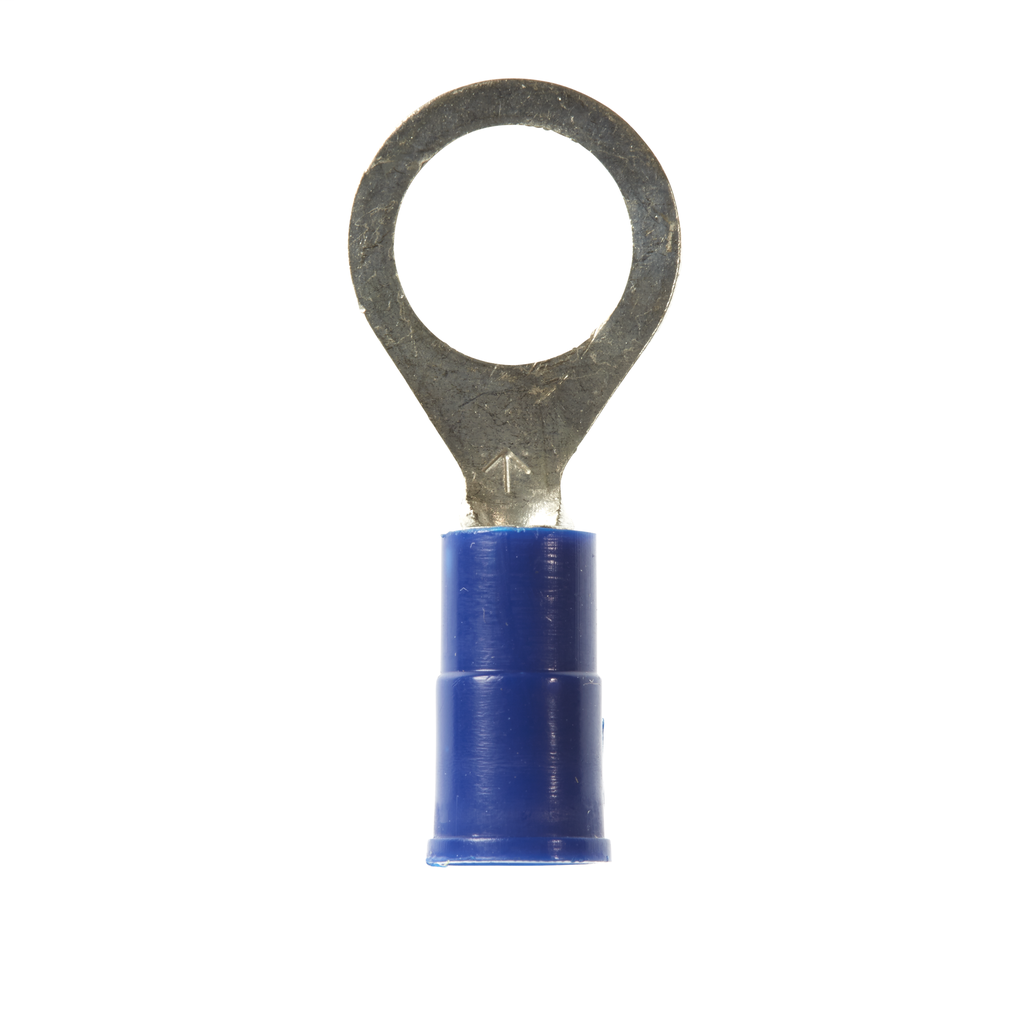

Scotchlok MV14-516R/SX 3M Scotchlok Vinyl Ring Terminal

Product Description

The Scotchlok MV14-516R/SX by 3M is a vinyl-insulated ring terminal designed for reliable wire termination. This product features a brazed-seam barrel that ensures a secure connection. The terminal can withstand temperatures ranging from minus forty to two hundred twenty-one degrees Fahrenheit, making it suitable for various applications. It is constructed from electrolytic copper, which offers excellent conductivity and is tin-plated to resist corrosion.

• Blue vinyl insulation for enhanced durability.
• Accommodates wire sizes from sixteen to fourteen AWG.
• UL listed and CSA certified for safety compliance.

Product Highlights

This terminal is ideal for electrical projects requiring secure connections and high-temperature durability.

Product Information

Standard Information

• Catalog Number: MV14-516R/SX
• Brand: Scotchlok

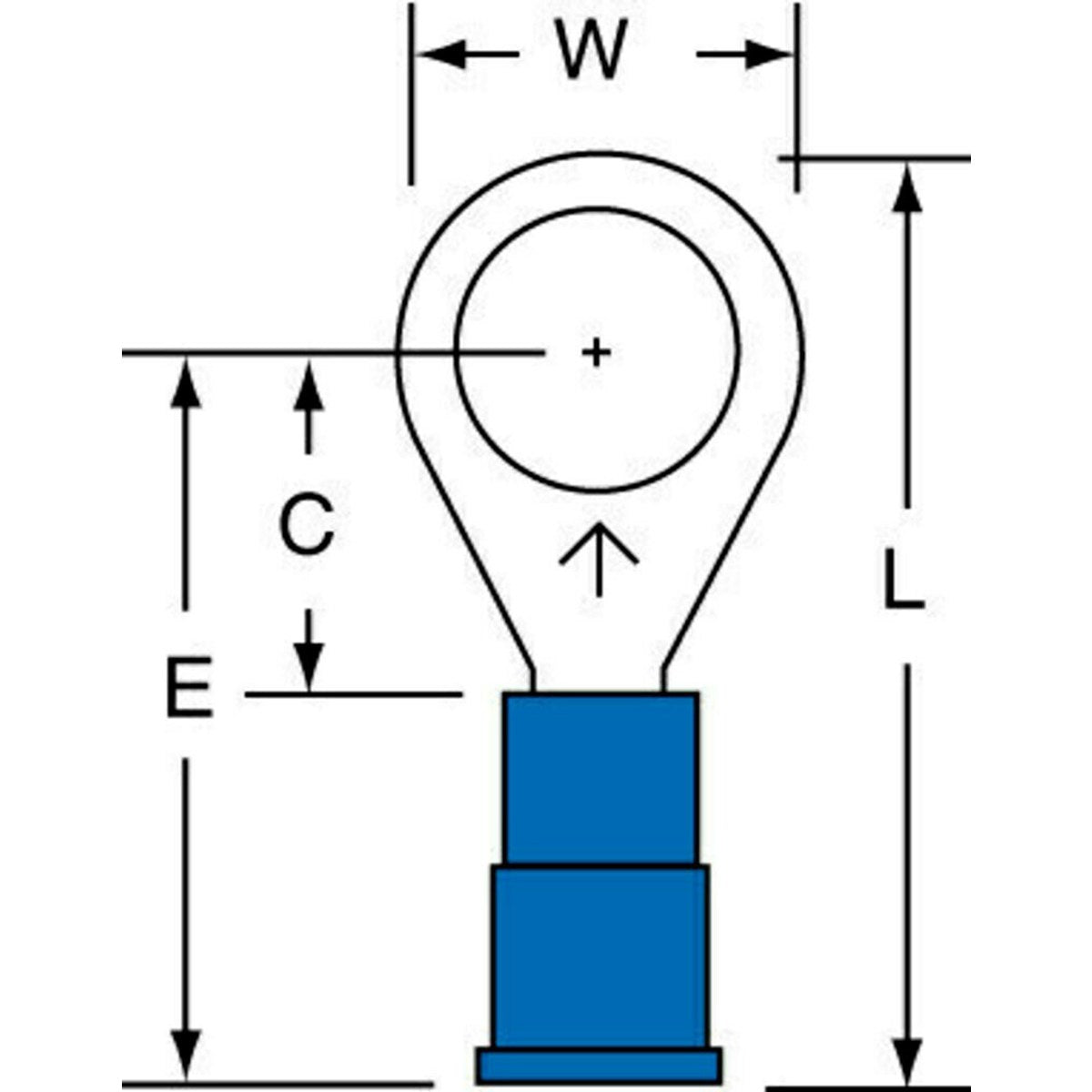

Technical Specifications

• Material: Vinyl
• Stud Size: 5/16 inches
• Overall Length: 1.08 inches
• Diameter: 0.47 inches
• Temperature Rating: -40 to 221 degrees Fahrenheit
• Conductor Size: 16-14 AWG
• Barrel Type: Brazed
• Compliance: UL Listed, CSA Certified, RoHS Compliant
