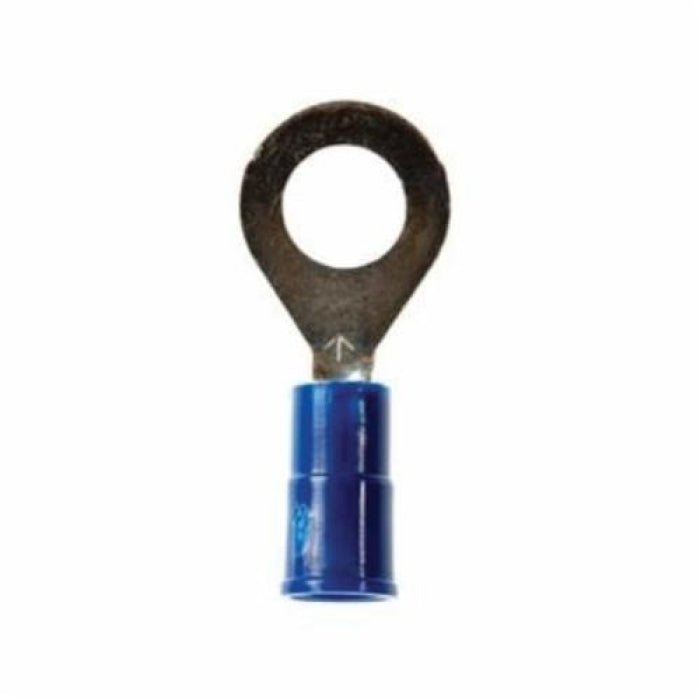

Scotchlok MV14-10R/LX Insulated Standard Ring Terminal 600/1000 VAC 16 to 14 AWG

Product Description

The 3M Scotchlok MV14-10R/LX is an insulated standard ring terminal designed for wire sizes 16 to 14 AWG. This terminal features a brazed seam barrel for secure connections and reliable performance. It can withstand temperatures between negative forty and two hundred twenty-one degrees Fahrenheit. The terminal is made of electrolytic copper with a tin plating to resist corrosion.

• Blue vinyl insulation for easy crimping.
• Funnel designed PVC sleeve for guiding wires.
• Standard ring tongue suitable for #10 stud size.

Product Highlights

This product is ideal for electrical applications requiring strong connections. It is suitable for use in building fixtures and luminaires.

Product Information

Standard Information

• Manufacturer: 3M
• Brand: Scotchlok

Technical Specifications

• Voltage Rating: 600/1000 VAC
• Conductor Size: 16 to 14 AWG
• Insulation Material: Vinyl
• Temperature Rating: -40 to 221 degrees F

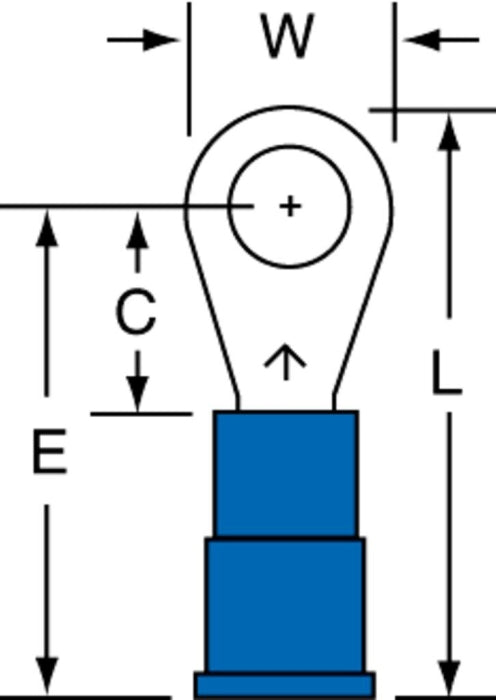

• Thickness: 0.03 in
• Length: 0.93 in
• Width: 0.31 in
• Stud Size: #10
