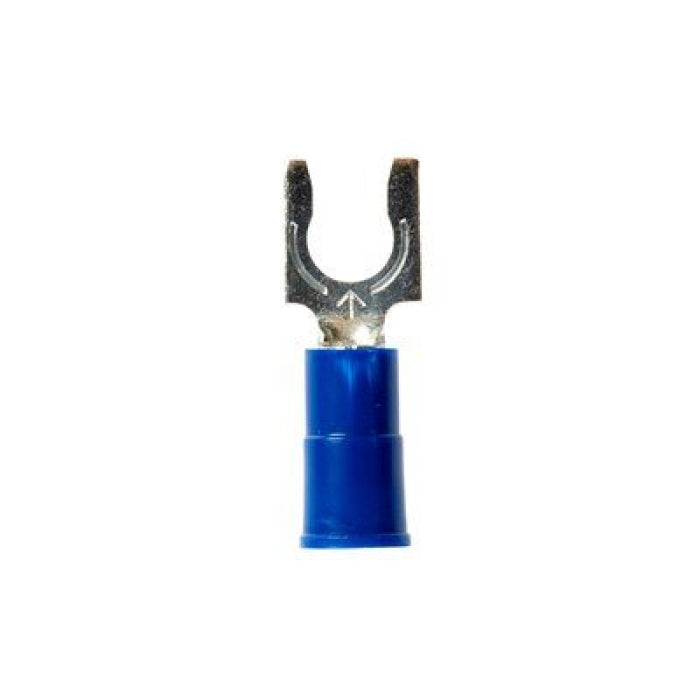

Scotchlok MV14-10FLX Insulated Locking Fork Terminal 16 to 14 AWG

Product Description

The Scotchlok MV14-10FLX by 3M is an insulated locking fork terminal designed for wire connection. This terminal accommodates wires ranging from sixteen to fourteen AWG. It features a brazed seam barrel and is equipped with a vinyl cover, providing mechanical strain relief and protecting against electrical shorts.

• Color-coded insulation for easy wire size identification
• Funnel designed PVC sleeve guides wire into position for crimping
• Resistant to corrosion and abrasion

Product Highlights

This locking fork terminal is essential for secure electrical connections in various applications.

Product Information

Standard Information

• Brand: 3M
• MPN: MV14-10FLX

Technical Specifications

• Conductor Size: 16 to 14 AWG
• Length: 0.88 inches
• Material: Copper
• Insulation Material: Vinyl
• Stud Size: #10
• Max Operating Temperature: 221 degrees Fahrenheit
• Voltage Rating: 600/1000 VAC
• Barrel Type: Brazed Seam
