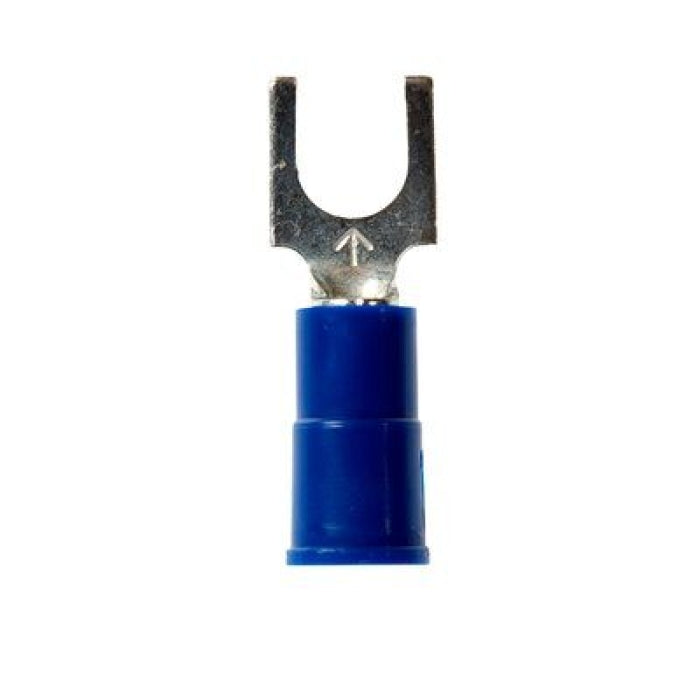

Scotchlok MV14-10FBX Block Insulated Fork Terminal 16 to 14 AWG 100/Bottle

Product Description

3M Scotchlok MV14-10FBX is a block insulated fork terminal designed for use with stranded copper conductors. This terminal accommodates wire sizes from 16 to 14 AWG. The barrel is brazed seam to ensure a secure connection. It features a rigid polyvinyl chloride sleeve designed to guide the wire into position while providing reliable electrical contacts and mechanical stress relief.

It is ideal for use in various electrical applications. The terminal can withstand temperatures ranging from -40 to 221 degrees Fahrenheit. It is suitable for terminal blocks and offers abrasion-resistant insulation for easy crimping.

• Color-coded for quick wire size identification
• Brazed seam barrel for secure connections
• Electrolytic copper for good conductivity and tin-plated for corrosion resistance

Product Highlights

This product ensures reliable performance with a durable design focused on easy installation.

Product Information

Standard Information

• Brand: Scotchlok
• Manufacturer: 3M

Technical Specifications

• Conductor Size: 16 to 14 AWG
• Length: 0.85 inches
• Insulation Type: Vinyl
• Voltage Rating: 600 Volts
• Stud Size: #10
• Barrel Diameter: 0.09 inches ID
• Barrel Type: Brazed
• Max Operating Temperature: 221 degrees Fahrenheit
