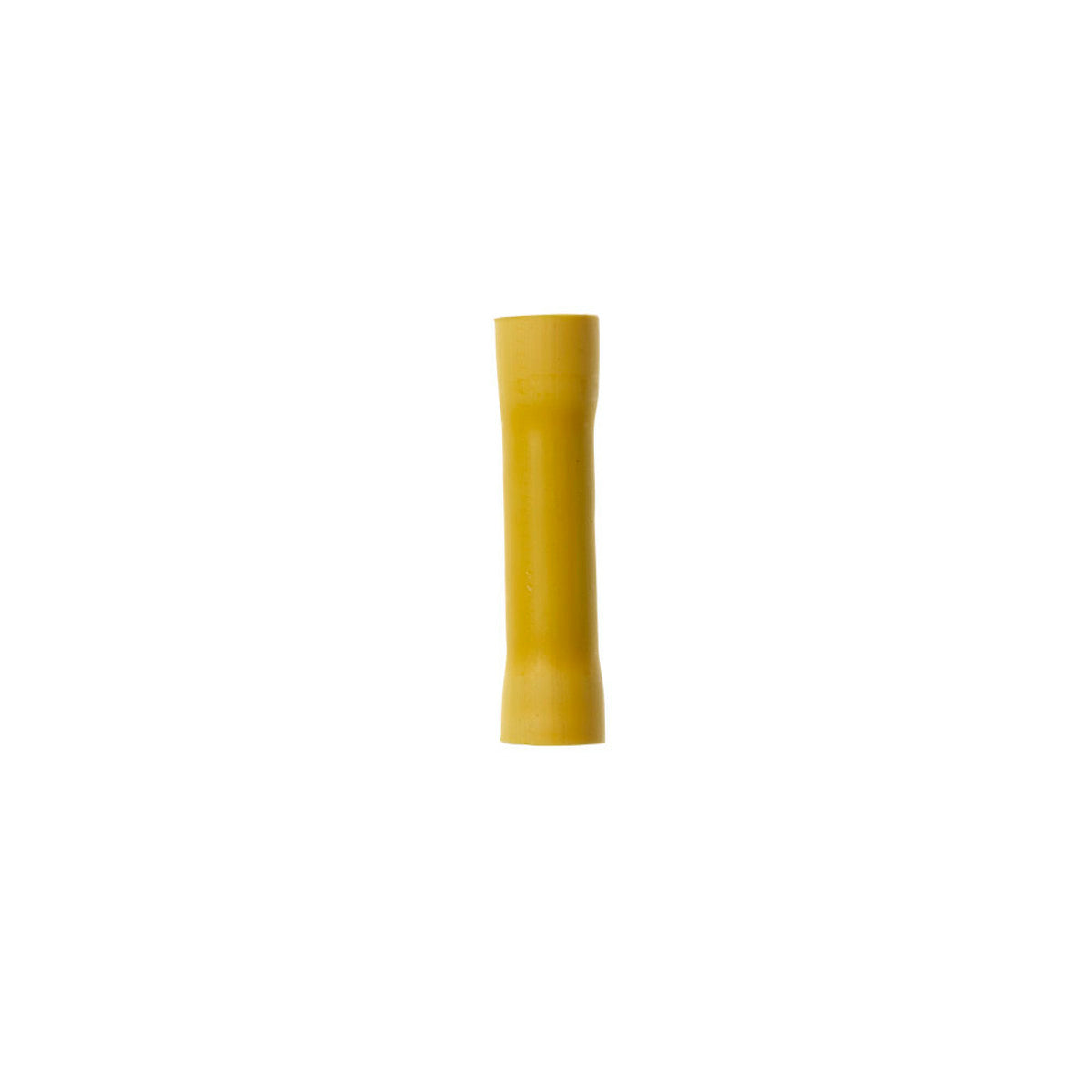

Scotchlok MV10BCX Butt Connector Seamless Vinyl Insulated, 50/Bottle

Product Description

The SCOTCHLOK MV10BCX butt connector is color-coded for easy wire size identification. Featuring a vinyl-insulated, seamless barrel, it provides a secure electrical connection to pre-stripped stranded wire. Chamfered barrel ends allow for simple wire insertion and correct positioning with a built-in wire stop. It is UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

• Vinyl-insulated, seamless barrel ensures a secure fit and offers reliable performance
• Offers electrical connection to a pre-stripped end of a stranded wire
• Built-in wire stop for correct positioning

Product Highlights

Seamless butt connector with vinyl insulation for secure electrical connections. Ideal for 12 to 10 AWG wires.

Product Information

Standard Information

• Brand: SCOTCHLOK
• Manufacturer Part Number: MV10BCX
• Country of Origin: United States

Technical Specifications

• Catalog Number: MV10BCX
• Manufacturer: 3M Electrical Products
• Brand: Scotchlok
• Sub Brand: Scotchlok
• Country of Origin: United States
• Made in USA: Yes
• Material: Vinyl
• Special Features: Standard
• Standard: UL and CSA
• UPC: 051128587676
• GTIN: 00051128587676
• Item Type: Butt
• Type: Butt
• Voltage Rating: 600 V (Building Wiring), 1000 V (Signs/Fixture)
• Length: 1.2 Inch
• Thickness: 0.038 Inch
• Barrel Length: 0.38 Inch
• Barrel Inner Diameter: 0.142 Inch
• Conductor Size: 12 to 10 AWG
• Insulation Type: Vinyl Insulated
• Temperature Rating: 221 Deg F
• Approval: UL 486-C, CSA 22.2
• Barrel Style: Seamless
• Constructional Feature: Corrosion Resistance
• Body Material: Copper alloy
• Maximum Conductor Size: 10 AWG 6 mm²
• Maximum Operating Temperature: 105 degrees C 221 degrees F
• Minimum Conductor Size: 12 AWG 4 mm²
• Overall Length: 1.2 in
• Maximum Insulation Outside Diameter: 0.218 in
• Inside Diameter: 0.142 in
• Minimum Conductor Leg Diameter: 12 AWG
