Scotchlok MV10-8FBX Block Insulated Fork Terminal 12 to 10 AWG

Product Description

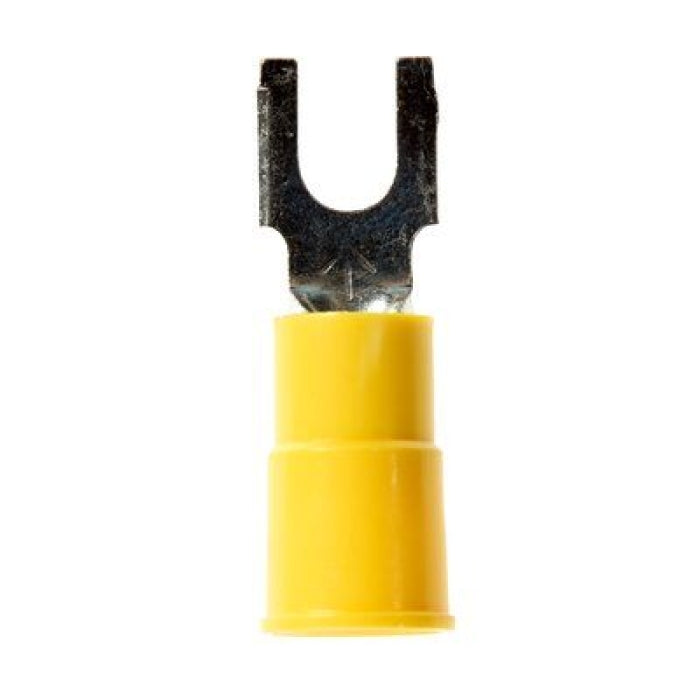

Scotchlok MV10-8FBX from 3M is a block insulated fork terminal designed for use with twelve to ten AWG stranded copper conductors. The terminal offers a reliable connection with its brazed seam barrel and is coated in a yellow vinyl insulation for easy identification. Its funnel design helps in guiding the wire during installation, ensuring both electrical contact and mechanical stress relief at the insulation point.

Key features include:

• Brazed seam barrel for a secure fit
• Funnel designed, rigid molded polyvinyl chloride sleeve
• Electrolytic copper construction for good conductivity

Product Highlights

This terminal is suitable for use in terminals and is designed to withstand temperatures from negative forty to two hundred twenty-one degrees Fahrenheit, with a working voltage range up to one thousand volts AC.

Product Information

Standard Information

• Manufacturer: 3M
• Part Number: MV10-8FBX

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Length: 1.03 inches
• Diameter: 0.135 inches
• Barrel Length: 0.25 inches
• Tongue Width: 0.32 inches
• Tongue Thickness: 0.04 inches
• Max Insulation Diameter: 1/4 inch
• Clearance: 0.29 inches
• Material: Electrolytic Copper/Vinyl
• Color: Yellow
