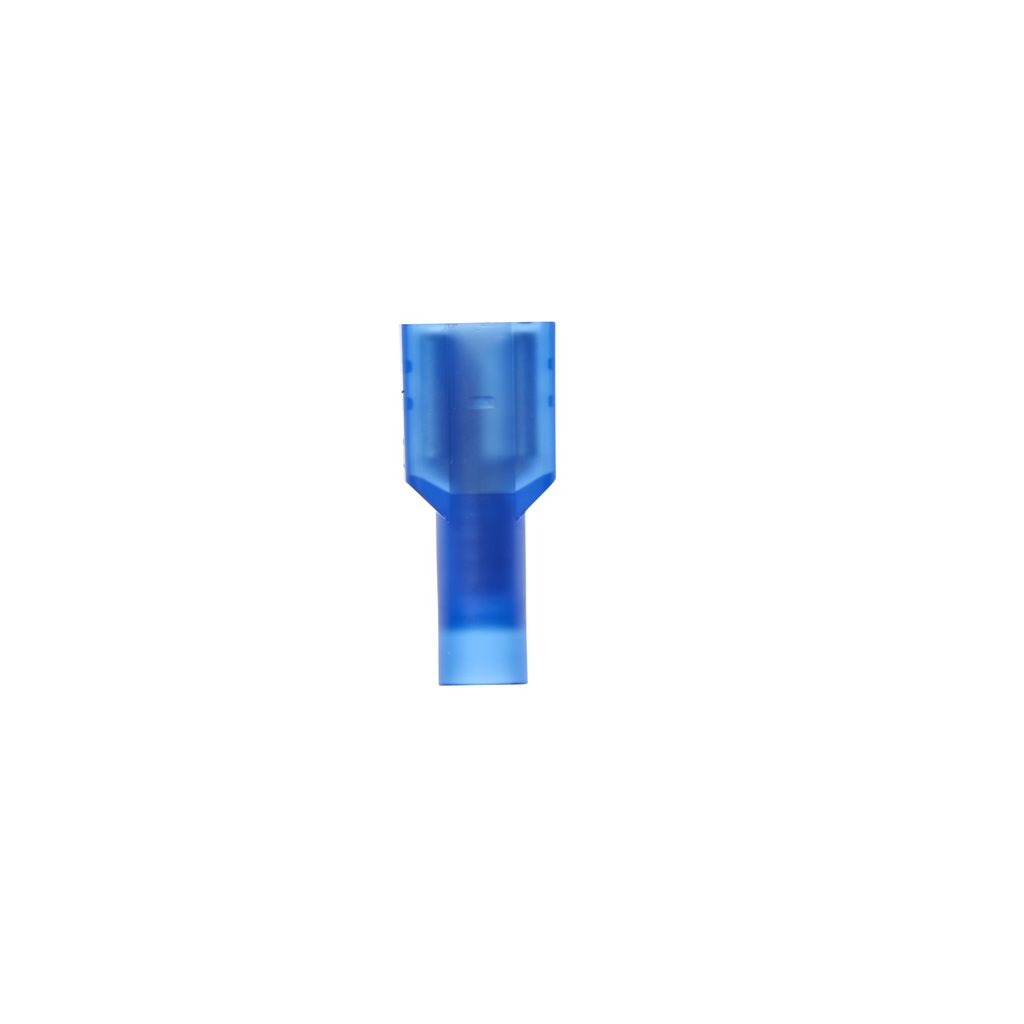

Scotchlok MNU14-250DFIX Nylon Insulated Female Disconnect 16 to 14 AWG 100 per Bottle

Product Description

3M Scotchlok MNU14-250DFIX is a nylon insulated female disconnect terminal designed for wire sizes sixteen to fourteen AWG. This terminal offers a reliable connection that allows for quick disconnection. The dented and rolled edges on this terminal enhance gripping power and stability when in use.

• Accommodates wire sizes 16 to 14 AWG
• Rated for 600V for building wire and 1000V for signs and fixtures
• Constructed from durable brass with a corrosion-resistant finish

Product Highlights

This Scotchlok terminal features a fully insulated barrel that withstands temperatures between negative forty to two hundred twenty-one degrees Fahrenheit, making it suitable for a range of electrical applications.

Product Information

Standard Information

• Brand: Scotchlok
• Color: Blue

Technical Specifications

• MPN: MNU14-250DFIX
• Material: Nylon
• Overall Length: 0.87 inches
• Width: 0.37 inches
• Terminal Type: Disconnect
• Insulation Material: Nylon
• Max Operating Temperature: 221 degrees F
• Terminal Size: 16 - 14 AWG
